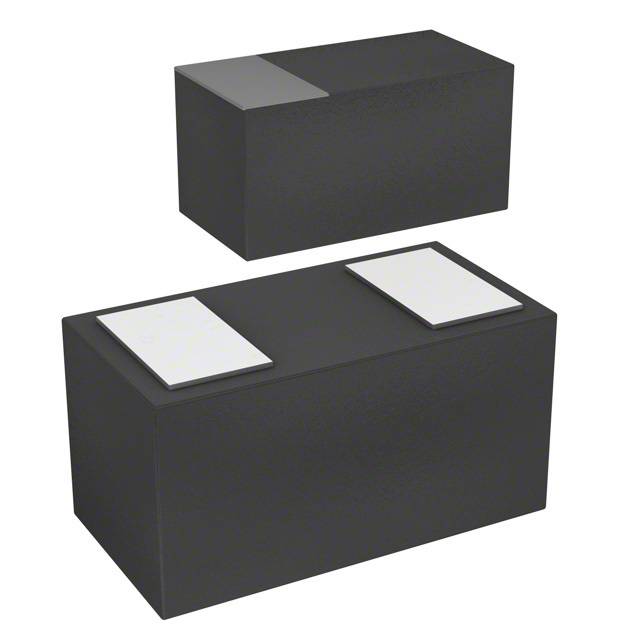

PESD5V0F1BSF,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD5V0F1BSF,315

Part No PESD5V0F1BSF,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 12.8VC SOD962
Datasheet
PESD5V0F1BSF,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.8V
Peak Pulse Current(Ippm) 2.2A (8/20μs)
Power Dissipation - Pd 28W
Applications General Purpose
Capacitance @ Frequency 0.25pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package 2-DSN (0.60x0.30)
Win Source Part Number 1087575-PESD5V0F1BSF,315
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD5V0F1BSF,315 CAD Model

Description

The PESD5V0F1BSF,315 is a bidirectional zener diode from Nexperia USA Inc. that comes in a 2-DSN (0.60x0.30) package.

  • Package: 2-DSN (0.60x0.30)
  • STAND-OFF Voltage (Vwm): 5.5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 12.8V
  • Peak Pulse Current (Ippm): 2.2A (8/20μs)
  • Category: Circuit Protection
  • Popularity: Medium
  • Temperature Range: -55°C to 150°C (TA)
