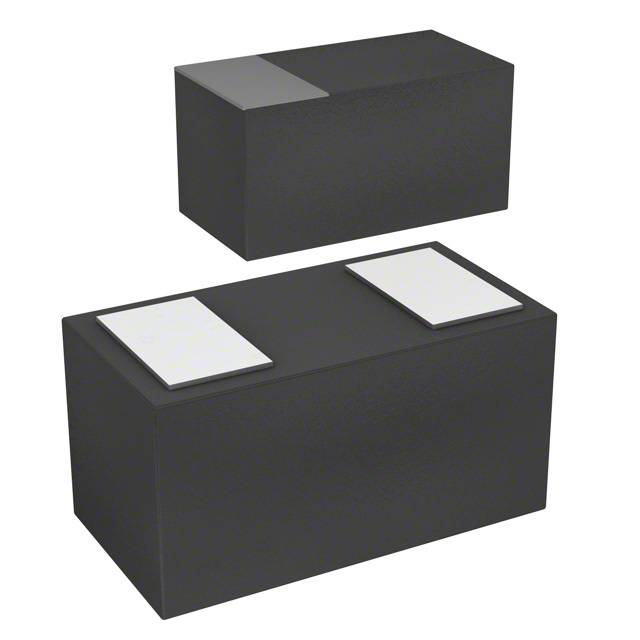

PESD5V0V1BCSF,315

Name: PESD5V0V1BCSF,315
Brand: Nexperia USA Inc.
SKU: 504055
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD5V0V1BCSF,315
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 12.8VC SOD962
Datasheet	PESD5V0V1BCSF,315 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Active
Type	Zener
Bidirectional Channels	1
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	12.8V
Peak Pulse Current(Ippm)	1A (8/20μs)
Power Dissipation - Pd	8W
Applications	General Purpose
Capacitance @ Frequency	5.3pF @ 1MHz
Temperature Range - Operating	-55°C to 150°C (TA)
Mounting	SMD (SMT)
Case / Package	2-DSN (0.60x0.30)
Win Source Part Number	1087617-PESD5V0V1BCSF,315
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PESD5V0V1BCSF,315 CAD Model

Alternative Products

Description

The PESD5V0V1BCSF,315 is a Zener diode from Nexperia USA Inc. used in various applications.

Component Type: Bidirectional Zener diode
Capacitance @ Frequency: 5.3pF @ 1MHz
STAND-OFF Voltage: 5V (Max)
Minimum Breakdown Voltage: 6V
Max Clamping Voltage: 12.8V
Peak Pulse Current (Ippm): 1A (8/20μs)
Power Dissipation - Pd: 8W
Category: Circuit Protection
Popularity: Medium
Supply and Demand Status: Balanced
