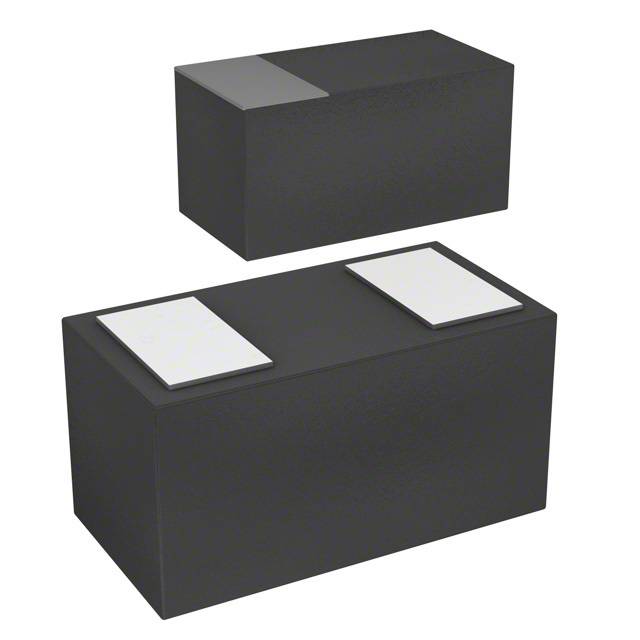

Same model may have multiple batches, images only for reference.
PESD5V0V1USF,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD5V0V1USF,315

Part No PESD5V0V1USF,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM SOD962
Datasheet
PESD5V0V1USF,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Applications General Purpose
Capacitance @ Frequency 4pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package 2-DSN (0.60x0.30)
Win Source Part Number 1087622-PESD5V0V1USF,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PESD5V0V1USF,315 CAD Model

Description

The Nexperia USA Inc. PESD5V0V1USF,315 is a Zener diode with a maximum stand-off voltage of 5V and minimum breakdown voltage of 6V.

  • Maximum Stand-Off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Capacitance: 4pF @ 1MHz
  • Application: General Purpose
  • Case/Package: 2-DSN (0.60x0.30)
  • Operating Temperature: -55°C to 150°C (TA)
  • Device Status: Active
  • Popularity: Medium
  • Supply and Demand: Medium popularity and supply and demand status
  • Mounting Type: Surface-Mount Technology (SMT)
  • Channel: Unidirectional
  • Category: Circuit Protection
