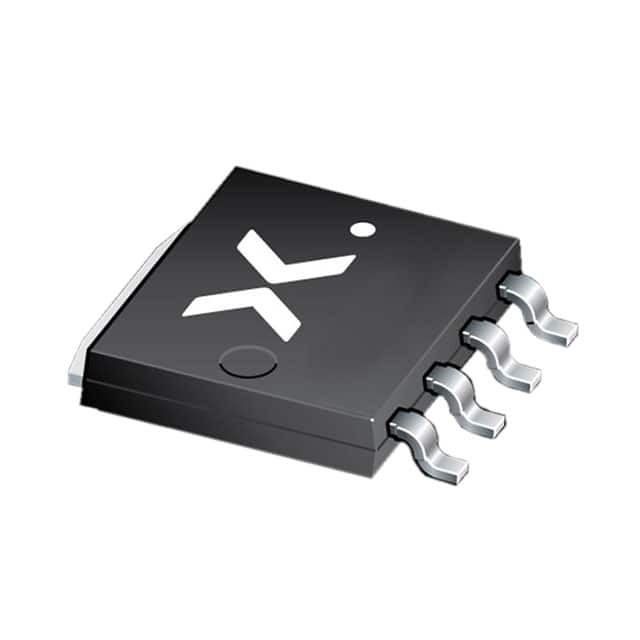

PH1330AL,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PH1330AL,115

Part No PH1330AL,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 100A LFPAK56 / N-Channel 30 V 100A (Tc) Surface Mount LFPAK56; Power-SO8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Series TrenchMOS™
Package Tape & Reel (TR)
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Rds On (Max) @ Id, Vgs 1.3mOhm @ 15A, 10V
Vgs(th) (Max) @ Id 2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 100 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds 6227 pF @ 12 V
Mounting SMD (SMT)
Supplier Device Package LFPAK56; Power-SO8
Package / Case SOT-1023, 4-LFPAK
Base Product Number PH1330
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 934064142115
Standard Package 1,500
Win Source Part Number 1204522-PH1330AL,115
Ultra Librarian 3D Model Ultra Librarian PH1330AL,115 CAD Model

Description

The PH1330AL,115 is an N-channel MOSFET from Nexperia. It is designed for use in various applications such as power supplies, motor control and lighting.

  • Maximum Drain-Source Voltage: 30V
  • Continuous Drain Current: 100A @ 25°C
  • Maximum On-Resistance: 1.3mΩ @ 15A and 10V gate-source voltage
  • Gate Charge: 100nC @ 10V
  • Input Capacitance: 6227pF @ 12V drain-source voltage
  • Package: SOT-1023
  • RoHS Directive: Compliant
