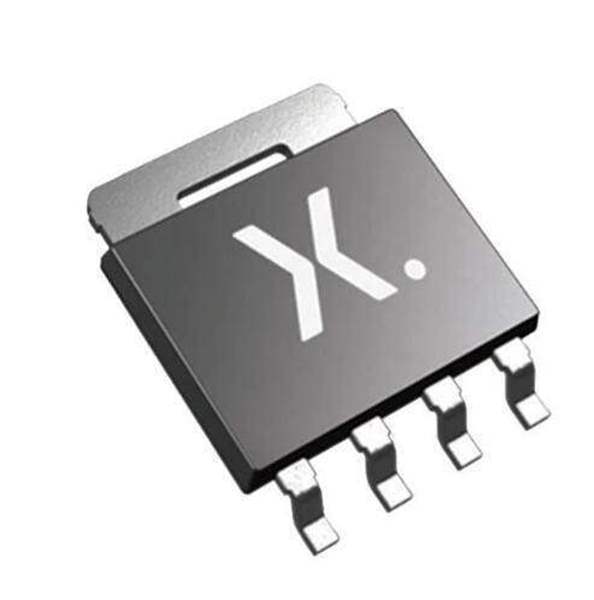

PHPT60603NYXNexperia USA Inc.
Same model may have multiple batches, images only for reference.

PHPT60603NYX

Part No PHPT60603NYX
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 60V 3A LFPAK56 PWRSO8
Datasheet
PHPT60603NYX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Category Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Part Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 3 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 270mV @ 300mA, 3A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 2A, 2V
Frequency - Transition 140MHz
Operating Temperature 175°C (TJ)
Ultra Librarian 3D Model Ultra Librarian PHPT60603NYX CAD Model

Description

NPN high power bipolar transistor in a SOT669 (LFPAK56) Surface-Mounted Device (SMD) power plastic package. PNP complement: PHPT60603PY
