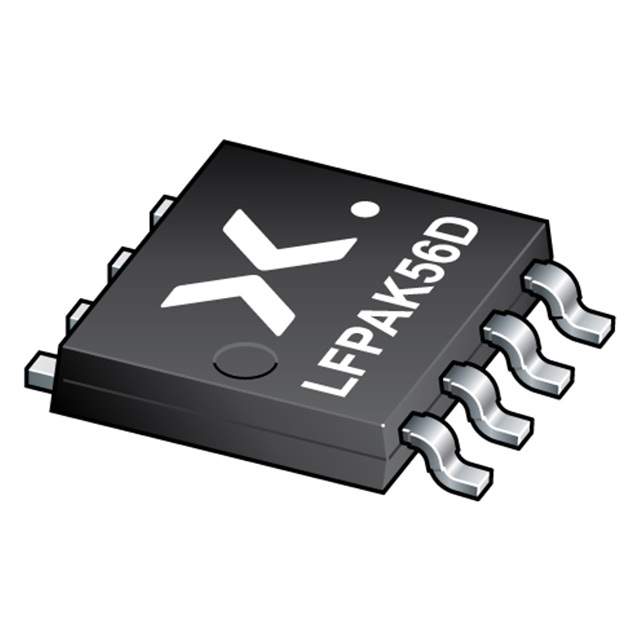

PHPT610030NKX

Name: PHPT610030NKX
Brand: Nexperia USA Inc.
SKU: 978077
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	PHPT610030NKX
Manufacturer	Nexperia USA Inc.
Catalog	RF Transistors (BJT)
Description	TRANS NPN 100V 3A LFPAK / Bipolar (BJT) Transistor Array 2 NPN (Dual) 100V 3A 140MHz 1.25W Surface Mount LFPAK56D
Datasheet	PHPT610030NKX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Arrays
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	100V
Vce Saturation (Max) @ Ib, Ic	330mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 1A, 10V
Power - Max	1.25W
Frequency - Transition	140MHz
Temperature Range - Operating	175°C (TJ)
Mounting	SMD (SMT)
Package / Case	SOT-1205, 8-LFPAK56
Supplier Device Package	LFPAK56D
Base Product Number	PHPT610030
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0075
Other Names	934068168115,PHPT610030NKX-ND,568-12551-6-ND,568-12551-2,568-12551-1-ND,568-12551-2-ND,1727-2265-1,568-12551-1,1727-2265-2,568-12551-6,1727-2265-6
Standard Package	1,500
Win Source Part Number	978077-PHPT610030NKX
Ultra Librarian 3D Model	Ultra Librarian PHPT610030NKX CAD Model

Alternative Products

Description

The 978077-PHPT610030NKX is a dual NPN bipolar transistor array designed for use in discrete semiconductor products.

Power: 1.25W (Max)
Voltage Collector Emitter Breakdown: 100V
Collector Current Maximum: 3A
Transistor Type: 2 NPN
DC Current Gain: 80 @ 1A and 10V
Frequency Transition: 140MHz
Package/Case: SOT-1205, 8-LFPAK56
Temperature Range: 175°C (TJ)
