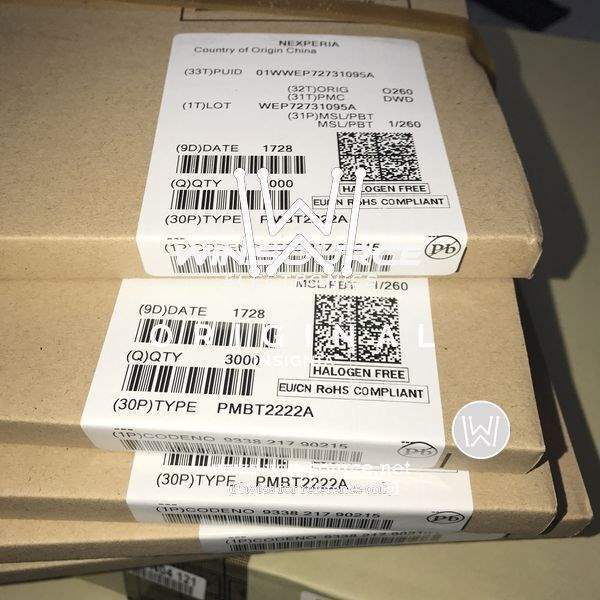

PMBT2222A,215 Nexperia USA Inc. PMBT2222A,215 label picture
Same model may have multiple batches, images only for reference.
PMBT2222A,215 Nexperia USA Inc. PMBT2222A,215 label picture
PMBT2222A,215 Nexperia USA Inc. PMBT2222A,215 label picture
Same model may have multiple batches, images only for reference.

PMBT2222A,215

Part No PMBT2222A,215
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS NPN 40V 0.6A SOT23
Datasheet
PMBT2222A,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 600mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 1V @ 50mA, 500mA
Collector Cut-off Current(Max) 10nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 150mA, 10V
Maximum Power Dissipation 250mW
Frequency - Transition 300MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package TO-236AB (SOT23)
Win Source Part Number 1089476-PMBT2222A,215
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Audio, Industrial
Ultra Librarian 3D Model Ultra Librarian PMBT2222A,215 CAD Model

Description

The Nexperia USA Inc. PMBT2222A,215 is a SMD (SMT) mounted NPN transistor with a maximum collector-emitter breakdown voltage of 40V.

  • Maximum Collector-Emitter Breakdown Voltage: 40V
  • Maximum Current Collector: 600mA
  • Operating Temperature Range: 150°C
  • Package: TO-236AB (SOT23)
  • Typical Gain (hFE): 100 @ 150mA, 10V
