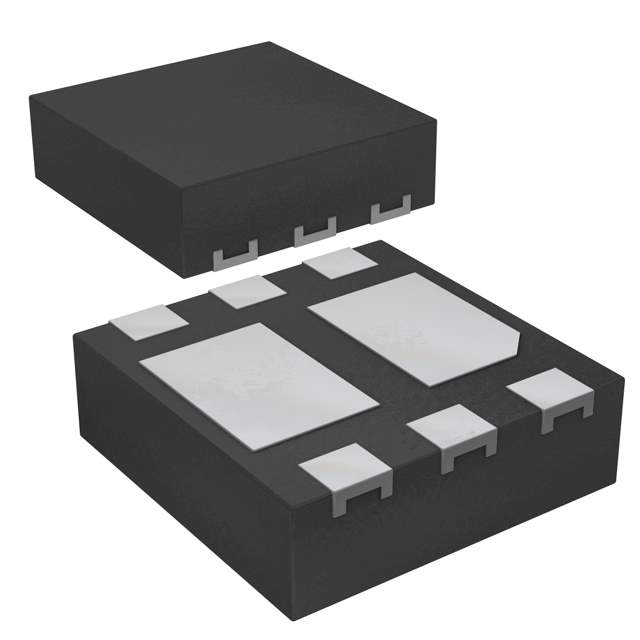

PMDPB56XNEAX Real Image
Same model may have multiple batches, images only for reference.

PMDPB56XNEAX

Part No PMDPB56XNEAX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET ARRAY 2NCH 30V DFN2020D-6
Datasheet
PMDPB56XNEAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
FET Type 2 N-Channel (Dual)
FET Feature Standard
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 3.1A (Ta)
Maximum Rds On at Id,Vgs 72 mOhm @ 3.1A, 4.5V
Gate-Source Threshold Voltage 1.25V @ 250μA
Max Gate Charge 5nC @ 4.5V
Max Input Capacitance 256pF @ 15V
Maximum Power Dissipation 485mW (Ta)
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN2020D-6
Win Source Part Number 1089510-PMDPB56XNEAX
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMDPB56XNEAX CAD Model

Description

The Nexperia USA Inc. PMDPB56XNEAX is a SMD (SMT) mounted 2 N-Channel (Dual) FET with a standard feature.

  • Power - Max: 485mW
  • Operating Temperature: -55°C to 150°C
  • Package / Case: DFN2020D-6
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 3.1A
  • Application: Discrete Semiconductor Products
