Same model may have multiple batches, images only for reference.

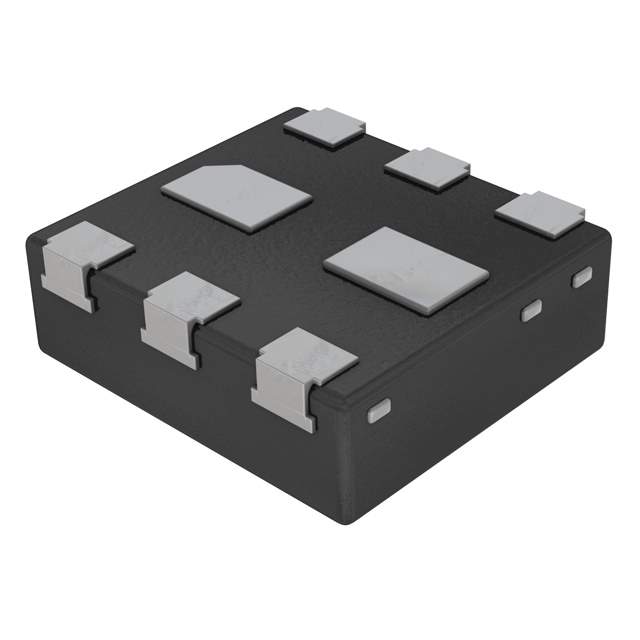

PMDXB950UPEZ Real Image
Same model may have multiple batches, images only for reference.

PMDXB950UPEZ

Part No PMDXB950UPEZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 0.5A 6DFN
Datasheet
PMDXB950UPEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 500mA
Maximum Rds On at Id,Vgs 1.4 Ohm @ 500mA, 4.5V
Gate-Source Threshold Voltage 950mV @ 250μA
Max Gate Charge 2.1nC @ 4.5V
Max Input Capacitance 43pF @ 10V
Maximum Power Dissipation 265mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1010B-6
Win Source Part Number 1089521-PMDXB950UPEZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMDXB950UPEZ CAD Model

Description

The PMDXB950UPEZ is a surface mount dual P-Channel logic level gate FET manufactured by Nexperia USA Inc.

  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current: 500mA @ 25°C
  • Gate-Source Threshold Voltage: 950mV @ 250μA
  • Maximum Power Dissipation: 265mW
  • Maximum Rds On @ Id,Vgs: 1.4 Ohm @ 500mA, 4.5V
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: DFN1010B-6
  • Supply and Demand Status: Balanced
