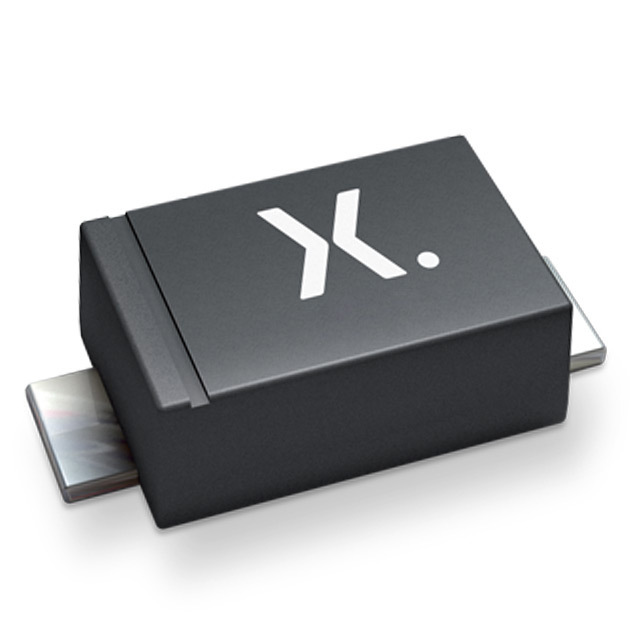

PMEG100T20ELR-QX

Name: PMEG100T20ELR-QX
Brand: Nexperia USA Inc.
SKU: 1367172
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG100T20ELR-QX
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 100V 2A SOD123W / Diode 100 V 2A Surface Mount SOD-123W
Datasheet	PMEG100T20ELR-QX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q100
Package	Tape & Reel
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	800 mV @ 2 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	12 ns
Current - Reverse Leakage @ Vr	1.25 µA @ 100 V
Capacitance @ Vr, F	200pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123W
Supplier Device Package	SOD-123W
Operating Temperature - Junction	175°C
Base Product Number	PMEG100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1367172-PMEG100T20ELR-QX
Ultra Librarian 3D Model	Ultra Librarian PMEG100T20ELR-QX CAD Model

Alternative Products

Description

The PMEG100T20ELR-QX is a single Schottky diode from Nexperia USA Inc.

Maximum Reverse Voltage (Vr): 100V
Average Rectified Current (Io): 2A
Forward Voltage (Vf): 800mV @ 2A
Recovery Time: less than 500ns
Reverse Leakage Current: 1.25µA
Package: SOD-123W
Junction Temperature: up to 175°C
