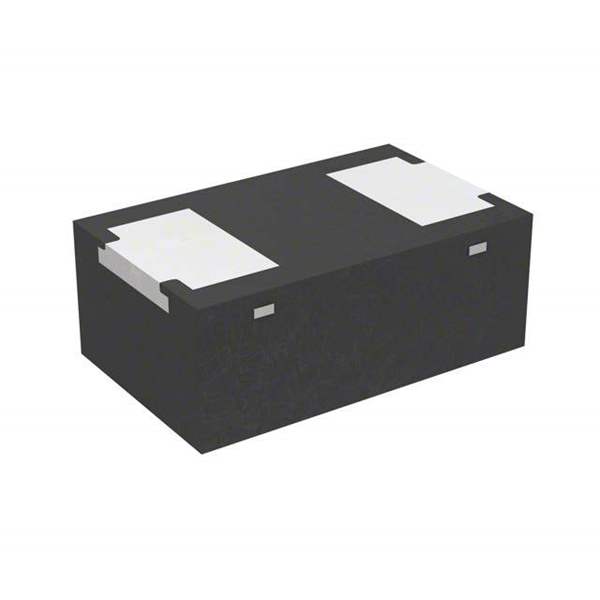

PMEG2005AELD,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG2005AELD,315

Part No PMEG2005AELD,315
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA SOD882D
Datasheet
PMEG2005AELD,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 440mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 6ns
Current - Reverse Leakage @ Vr 1.5mA @ 20V
Capacitance @ Vr, F 25pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package 2-DFN1006D (0.6x1.0)
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089536-PMEG2005AELD,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMEG2005AELD,315 CAD Model

Description

The Nexperia USA Inc. PMEG2005AELD,315 is a high-quality electronic component that is designed to provide reliable performance.

  • Popularity: Medium
  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 20V
  • Current - Average Rectified (Io): 500mA
  • Voltage - Forward (Vf) (Max) @ If: 440mV @ 500mA
  • Reverse Recovery Time (trr): 6ns
  • Current - Reverse Leakage @ Vr: 1.5mA @ 20V
  • Capacitance @ Vr, F: 25pF @ 1V, 1MHz
  • Operating Temperature - Junction: 150°C (Max)
  • Categories: Discrete Semiconductor Products
  • Status: Active
  • Case / Package: 2-DFN1006D (0.6x1.0)
  • Speed(Frequency): Fast Recovery = 200mA (Io)
  • Supply and Demand Status: Balanced
