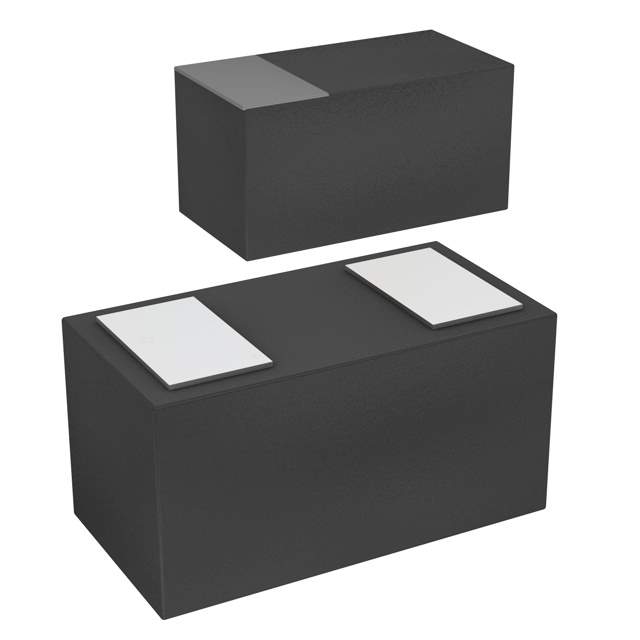

PMEG4005ESFYL Real Image
Same model may have multiple batches, images only for reference.

PMEG4005ESFYL

Part No PMEG4005ESFYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 0.5A SOD962
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Maximum) at If 880mV at 500mA
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 1.28ns
Current - Reverse Leakage at Vr 6.5μA at 40V
Capacitance at Vr, F 17pF at 1V, 1MHz
Mounting Style SMD
Manufacturer Package 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Operating Temperature - Junction 150°C (Maximum)
Manufacturer Pack Quantity 9,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801519-PMEG4005ESFYL
Ultra Librarian 3D Model Ultra Librarian PMEG4005ESFYL CAD Model

Description

The Nexperia PMEG4005ESFYL from Nexperia is a Schottky diode designed for high-speed rectification applications.

  • Average Rectified Current: 500mA
  • Maximum Reverse Voltage: 40V
  • Package: DSN0603-2
  • Mounting: Surface Mount
  • Reverse Recovery Time: 1.28ns
  • Forward Voltage: 880mV @ 500mA
  • Manufacturer Pack Quantity: 9,000
  • MSL Level: 1
  • Capacitance: 17pF @ 1V, 1MHz
