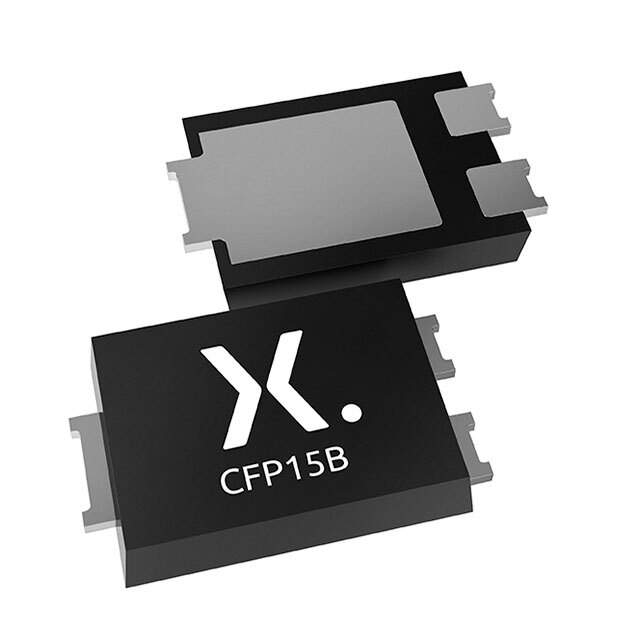

PMEG45A10EPDAZ Real Image
Same model may have multiple batches, images only for reference.

PMEG45A10EPDAZ

Part No PMEG45A10EPDAZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 10A CFP15
Datasheet
PMEG45A10EPDAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 540mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 21ns
Current - Reverse Leakage @ Vr 500μA @ 45V
Capacitance @ Vr, F 715pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package CFP15
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089636-PMEG45A10EPDAZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMEG45A10EPDAZ CAD Model

Description

The Nexperia USA Inc. PMEG45A10EPDAZ is a Schottky diode type IC with a maximum DC reverse voltage of 45V.

  • Type: Schottky diode
  • Maximum DC Reverse Voltage: 45V
  • Average Rectified Current: 10A
  • Forward Voltage: 540mV @ 10A
  • Reverse Recovery Time: 21ns
  • Reverse Leakage Current: 500μA @ 45V
  • Capacitance: 715pF @ 1V and 1MHz
  • Junction Temperature: 150°C (Max)
  • Case/Package: CFP15
  • Supply and Demand: balanced
