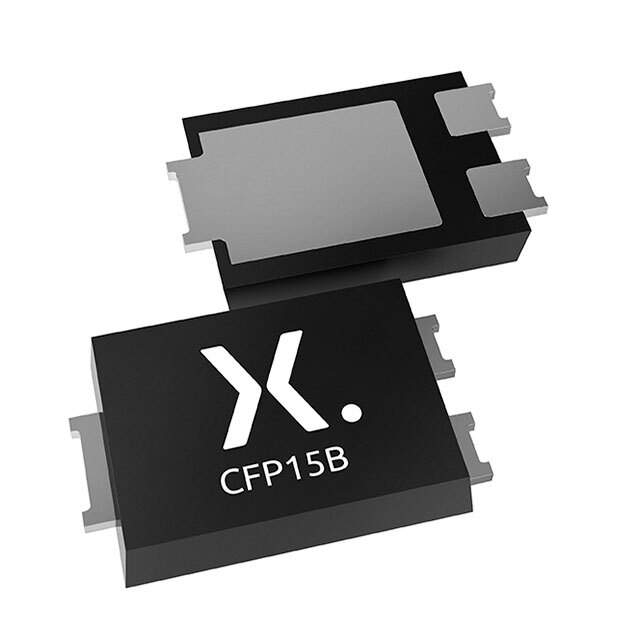

PMEG45A10EPDZ

Name: PMEG45A10EPDZ
Brand: Nexperia USA Inc.
SKU: 959242
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PMEG45A10EPDZ
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 45V 10A CFP15 / Diode Schottky 45 V 10A Surface Mount CFP15
Datasheet	PMEG45A10EPDZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	540 mV @ 10 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	13 ns
Current - Reverse Leakage @ Vr	500 µA @ 45 V
Capacitance @ Vr, F	240pF @ 10V, 1MHz
Mounting	SMD (SMT)
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	CFP15
Operating Temperature - Junction	150°C (Max)
Base Product Number	PMEG45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	PMEG45A10EPDZ-ND,1727-7644-1,1727-7644-2,1727-7644-6,934068205146
Standard Package	1,500
Win Source Part Number	959242-PMEG45A10EPDZ
Ultra Librarian 3D Model	Ultra Librarian PMEG45A10EPDZ CAD Model

Alternative Products

Description

The PMEG45A10EPDZ from Nexperia USA Inc. is a Schottky diode with a voltage rating of 45V and a current average rectified (Io) of 10A.

Voltage Forward (Vf) (Max) @ If: 540 mV @ 10 A
Reverse Recovery Time (trr): 13 ns
Capacitance @ Vr, F: 240pF @ 10V, 1MHz
Temperature Range: -55°C to 150°C
Mounting: SMD (SMT)
Packaging: Tape & reel
MSL Level: 1 (Unlimited)
ECCN: EAR99
