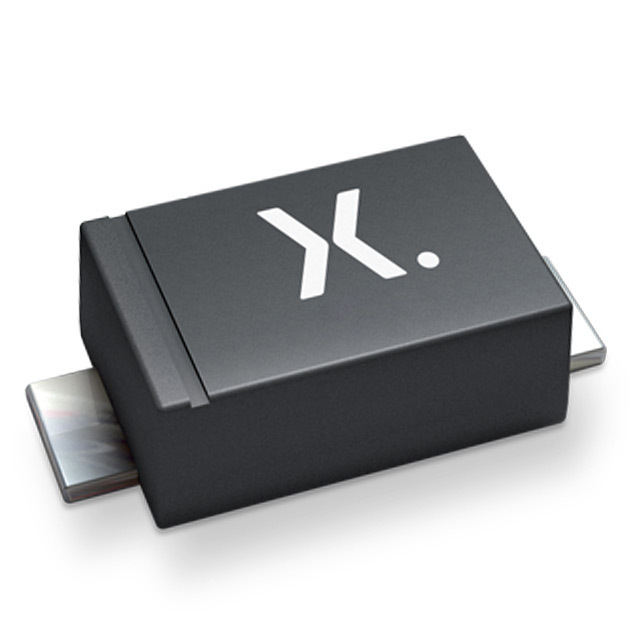

PMEG6020ER-QX Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMEG6020ER-QX

Part No PMEG6020ER-QX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 60V 2A SOD123W / Diode 60 V 2A Surface Mount SOD-123W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 530 mV @ 2 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 150 µA @ 60 V
Capacitance @ Vr, F 240pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123W
Supplier Device Package SOD-123W
Operating Temperature - Junction 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1357372-PMEG6020ER-QX
Ultra Librarian 3D Model Ultra Librarian PMEG6020ER-QX CAD Model

Description

The PMEG6020ER-QX is a Schottky diode from Nexperia USA Inc.

  • Application: Rectification
  • Mounting Type: Surface Mountable
  • Package: SOD-123W
  • Maximum Reverse Voltage: 60V
  • Average Rectified Current: 2A
  • Forward Voltage: 530mV @ 2A
  • Reverse Recovery Time: Less than 500ns
  • Reverse Leakage Current: 150μA @ 60V
  • Capacitance: 240pF @ 1V and 1MHz
  • Operating Temperature Range: Up to 150°C
