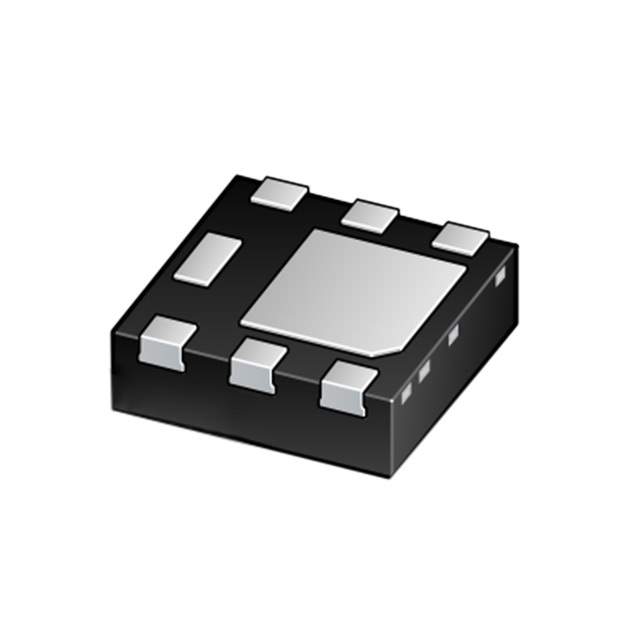

PMPB15XPH

Name: PMPB15XPH
Brand: Nexperia USA Inc.
SKU: 1171279
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PMPB15XPH
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 12V 8.2A DFN2020MD-6 / P-Channel 12 V 8.2A (Ta) 1.7W (Ta), 12.5W (Tc) Surface Mount DFN2020MD-6
Datasheet	PMPB15XPH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	8.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	19mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	100 nC @ 4.5 V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	2875 pF @ 6 V
Power Dissipation (Max)	1.7W (Ta), 12.5W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	DFN2020MD-6
Package / Case	6-UDFN Exposed Pad
Base Product Number	PMPB15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	1727-1366-2,1727-1366-1,568-10812-2-ND,568-10812-1,568-10812-2,1727-1366-6,568-10812-6,PMPB15XPH-ND,568-10812-1-ND,568-10812-6-ND,934066615125
Standard Package	3,000
Win Source Part Number	1171279-PMPB15XPH
Ultra Librarian 3D Model	Ultra Librarian PMPB15XPH CAD Model

Description

The PMPB15XPH is a P-channel MOSFET transistor belonging to the Transistors - FETs, MOSFETs - Single category. Manufactured by Nexperia USA Inc.

Package: tape and reel
Standard Package: 3,000
Maximum Drain to Source Voltage: 12V
Maximum Continuous Drain Current @ 25°C: 8.2A
REACH Regulation: unaffected
ECCN Classification: EAR99
