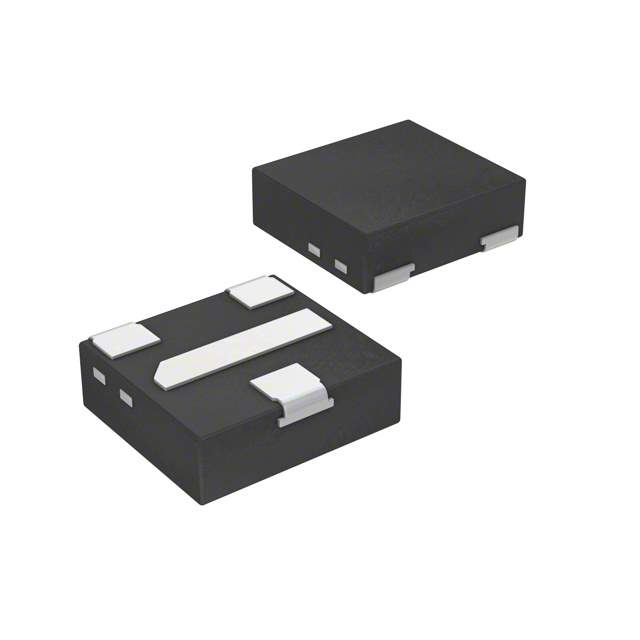

PMXB75UPEZ Real Image
Same model may have multiple batches, images only for reference.

PMXB75UPEZ

Part No PMXB75UPEZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V DFN1010D-3G
Datasheet
PMXB75UPEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 12nC @ 4.5V
Max Input Capacitance 608pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 317mW (Ta), 8.33W (Tc)
Maximum Rds On at Id,Vgs 85 mOhm @ 2.9A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1010D-3
Dimension 3-XDFN Exposed Pad
Win Source Part Number 1089812-PMXB75UPEZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMXB75UPEZ CAD Model

Description

The PMXB75UPEZ is a P-Channel MOSFET manufactured by Nexperia USA Inc.

  • Supply and Demand Status: balanced
  • Power Dissipation: 317mW (Ta), 8.33W (Tc)
  • Drain-Source Breakdown Voltage: 20V
  • Maximum Rds On @ Id,Vgs: 85 mOhm @ 2.9A, 4.5V
  • Package Type: DFN1010D-3
  • Dimension: 3-XDFN Exposed Pad
