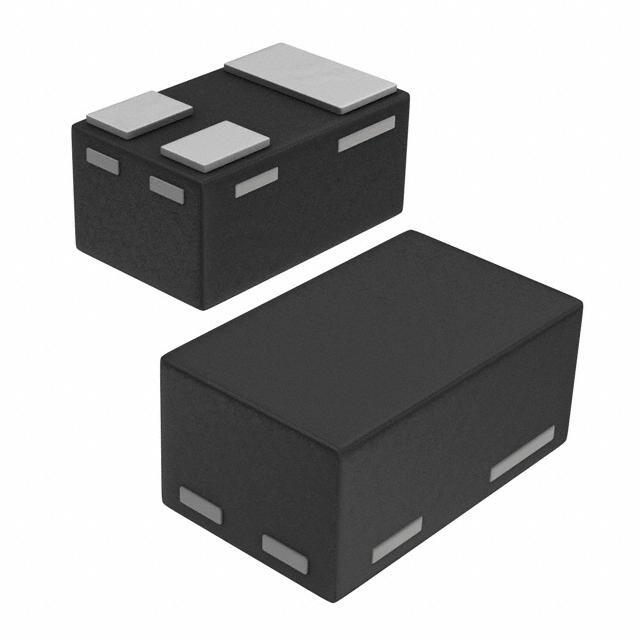

PMZB380XN,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMZB380XN,315

Part No PMZB380XN,315
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V SGL 3DFN / Trans MOSFET N-CH 30V 0.93A 3-Pin DFN-B T/R
Datasheet
PMZB380XN,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 930mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Vgs(th) (Maximum) @ Id 1.5V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 0.87nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 56pF @ 25V
Vgs (Maximum) ±12V
Power Dissipation (Maximum) 360mW (Ta), 2.7W (Tc)
Rds On (Maximum) @ Id, Vgs 460 mOhm @ 200mA, 4.5V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 3-DFN1006B (0.6x1)
Package 3-XFDFN
Win Source Part Number 792441-PMZB380XN,315
Popularity Medium
Supply and Demand Status Limited
Quantity per package 10k pcs
Family Name PMZB380XN
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PMZB380XN,315 CAD Model

Description

The PMZB380XN,315 MOSFET transistor is manufactured by Nexperia USA Inc.

  • Win Source Part Number: 792441-PMZB380XN,315
  • Drain Source Voltage: 30V
  • Maximum Power Dissipation: 360mW (Ta), 2.7W (Tc)
