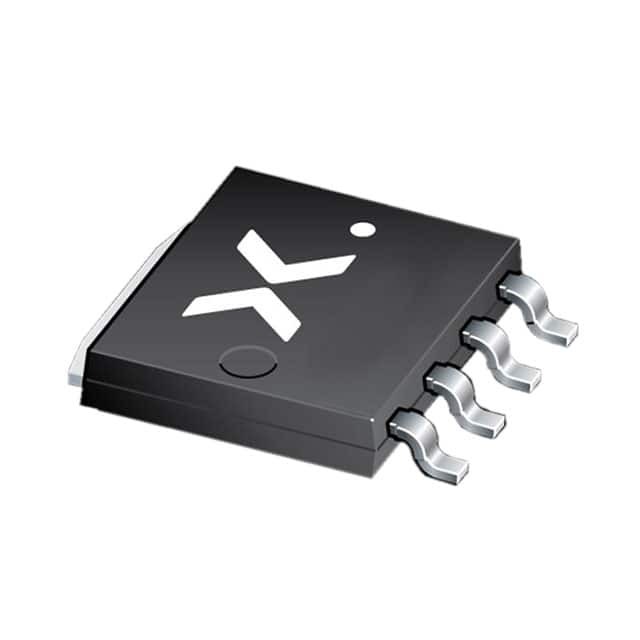

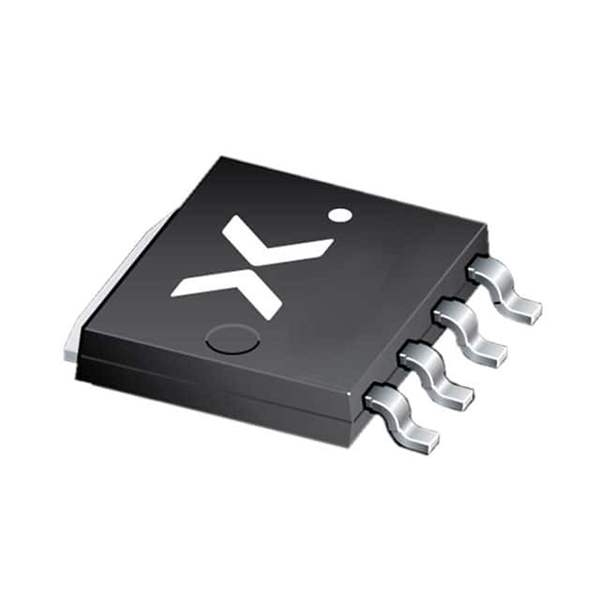

PSMN1R2-25YL,115

Name: PSMN1R2-25YL,115
Brand: Nexperia USA Inc.
SKU: 1019935
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PSMN1R2-25YL,115
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 100A LFPAK56 / N-Channel 25 V 100A (Tc) 121W (Tc) Surface Mount LFPAK56; Power-SO8
Datasheet	PSMN1R2-25YL,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.2mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	105 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6380 pF @ 12 V
Power Dissipation (Max)	121W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	LFPAK56; Power-SO8
Package / Case	SOT-1023, 4-LFPAK
Base Product Number	PSMN1R2
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	1727-4277-6,568-4909-6-ND,568-4909-1-ND,568-4909-2-ND,568-4909-2,568-4909-1,934063812115,PSMN1R225YL115,1727-4277-1,568-4909-6,1727-4277-2
Standard Package	1,500
Win Source Part Number	1019935-PSMN1R2-25YL,115
Ultra Librarian 3D Model	Ultra Librarian PSMN1R2-25YL,115 CAD Model

Alternative Products

Description

This product falls under the Discrete Semiconductor Products category and is a transistor - FETs, MOSFETs - Single.

Manufacturer: Nexperia USA Inc.
Drain to Source Voltage (Vdss): 25 V
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 1.2mOhm @ 15A, 10V
Temperature Range - Operating: -55°C ~ 150°C (TJ)
