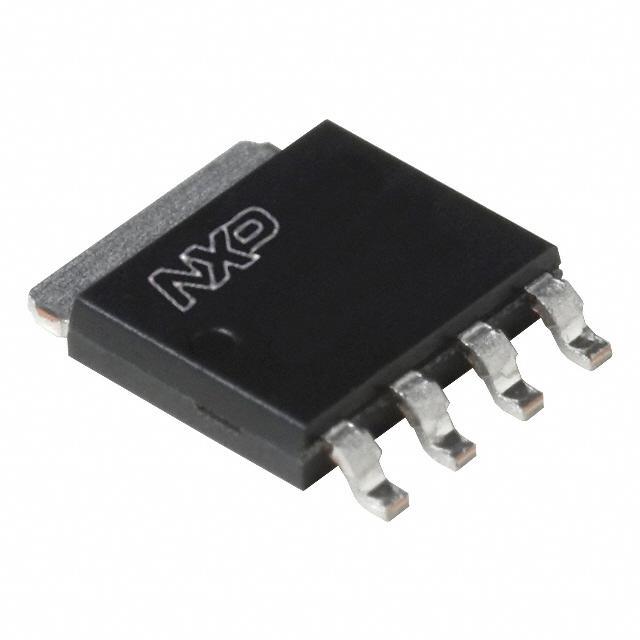

PSMN1R5-30YL,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PSMN1R5-30YL,115

Part No PSMN1R5-30YL,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V LFPAK / Trans MOSFET N-CH 30V 100A 5-Pin(4+Tab) LFPAK T/R
Datasheet
PSMN1R5-30YL,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.15V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 77.9nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 5057pF @ 12V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 109W (Tc)
Rds On (Maximum) @ Id, Vgs 1.5 mOhm @ 15A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package LFPAK56, Power-SO8
Package SC-100, SOT-669
Win Source Part Number 792619-PSMN1R5-30YL,115
Popularity Medium
Supply and Demand Status Limited
Family Name PSMN1R5-30YL
Introduction Date April 09, 2010
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian PSMN1R5-30YL,115 CAD Model

Description

The Nexperia USA Inc.This component is in limited supply and demand status. Nexperia USA Inc..

  • Package: SC-100, SOT-669
  • Operating Temperature: -55°C to 175°C (TJ)
  • Current Rating: 100A (Tc)
  • Power Dissipation (maximum): 109W (Tc)
