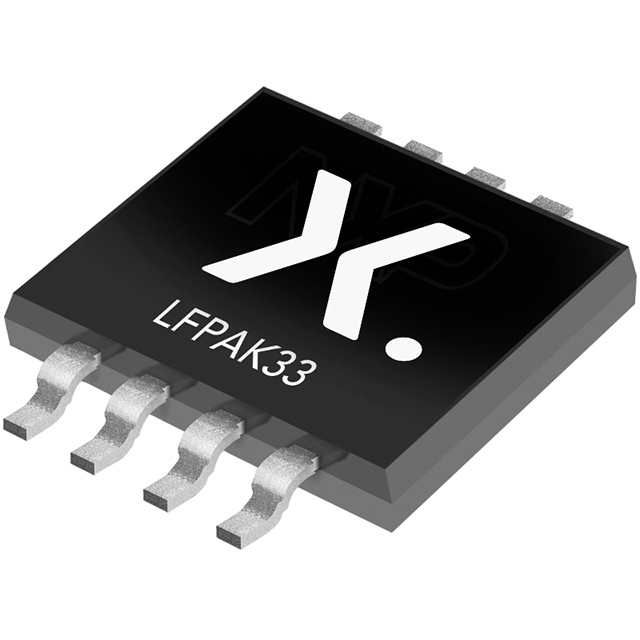

PSMN4R4-30MLC,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PSMN4R4-30MLC,115

Part No PSMN4R4-30MLC,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 70A LFPAK33  /  N-Channel 30 V 70A (Tc) 69W (Tc) Surface Mount LFPAK33
Datasheet
PSMN4R4-30MLC,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4.65mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 2.15V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 23 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1515 pF @ 15 V
Power Dissipation (Max) 69W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package LFPAK33
Package / Case SOT-1210, 8-LFPAK33 (5-Lead)
Base Product Number PSMN4R4
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 568-9576-2,568-9576-1,1727-7143-1,934066938115,1727-7143-2,568-9576-6,1727-7143-6,568-9576-6-ND,PSMN4R430MLC115,568-9576-2-ND,568-9576-1-ND
Standard Package 1,500
Win Source Part Number 994029-PSMN4R4-30MLC,115
Ultra Librarian 3D Model Ultra Librarian PSMN4R4-30MLC,115 CAD Model

Description

The PSMN4R4-30MLC,115 is a discrete semiconductor product from Nexperia USA Inc. that features a N-channel MOSFET with a drain to source voltage of 30V and a continuous drain current of 70A @ Tc.

  • Type: N-channel MOSFET
  • Drain to Source Voltage: 30V
  • Continuous Drain Current: 70A @ Tc
  • Rds on Maximum: 4.65mOhm @ 25A and 10V
  • Gate Charge: 23nC @ 10V
  • Input Capacitance: 1515pF @ 15V
  • Package: Tape and Reel
  • Standard Package: 1,500
  • Applications: Automotive, Industrial, and Consumer Electronics
