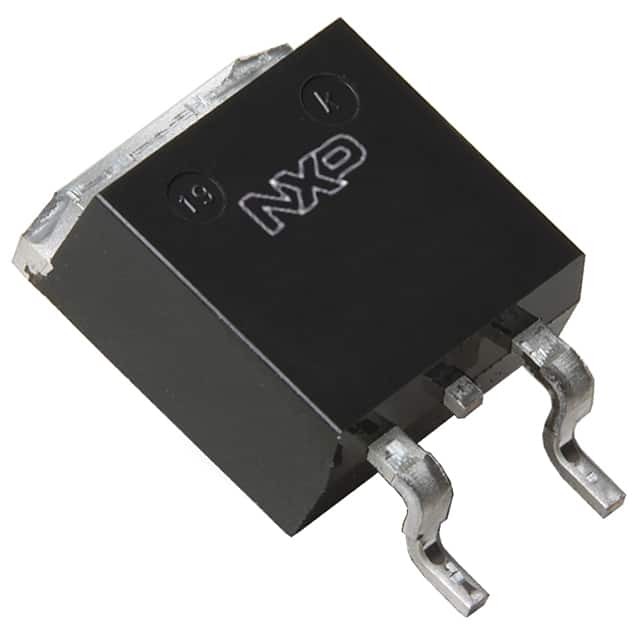

PSMN7R6-100BSEJ

Name: PSMN7R6-100BSEJ
Brand: Nexperia USA Inc.
SKU: 1211498
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PSMN7R6-100BSEJ
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 75A D2PAK / N-Channel 100 V 75A (Tj) 296W (Tc) Surface Mount D2PAK
Datasheet	PSMN7R6-100BSEJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	75A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7.6mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	128 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7110 pF @ 50 V
Power Dissipation (Max)	296W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	D2PAK
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Base Product Number	PSMN7R6
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	1727-1104-1,1727-1104-2,568-10259-2,568-10259-1,934067543118,PSMN7R6-100BSEJ-ND,568-10259-6-ND,568-10259-1-ND,1727-1104-6,568-10259-2-ND,568-10259-6
Standard Package	800
Win Source Part Number	1211498-PSMN7R6-100BSEJ
Ultra Librarian 3D Model	Ultra Librarian PSMN7R6-100BSEJ CAD Model

Alternative Products

Description

The Nexperia USA Inc. PSMN7R6-100BSEJ is an N-channel MOSFET with a TO-263-3, D²Pak (2 Leads + Tab), TO-263AB package.

Channel Type: N-Channel
Package: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Drain-Source Voltage: 100V
Continuous Drain Current: 75A @ 25°C
Rds On: 7.6mOhm @ 25A and 10V
Gate Charge: 128 nC @ 10V
Input Capacitance: 7110 pF @ 50V
Maximum Power Dissipation: 296W @ Tc
REACH Compliant: Yes
ECCN: EAR99
