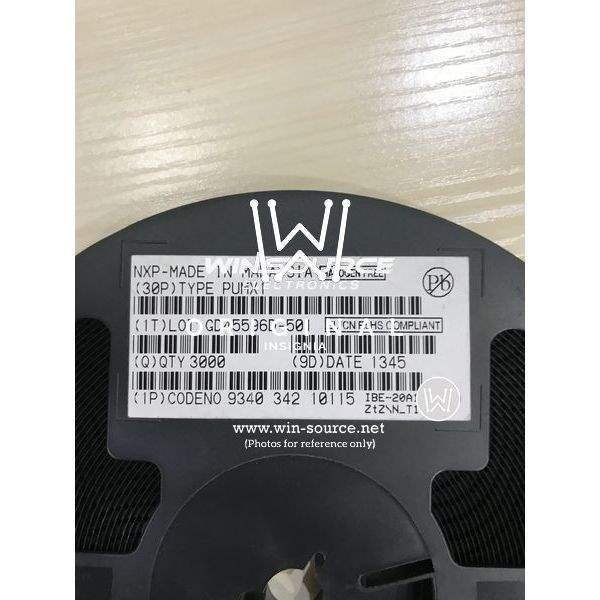

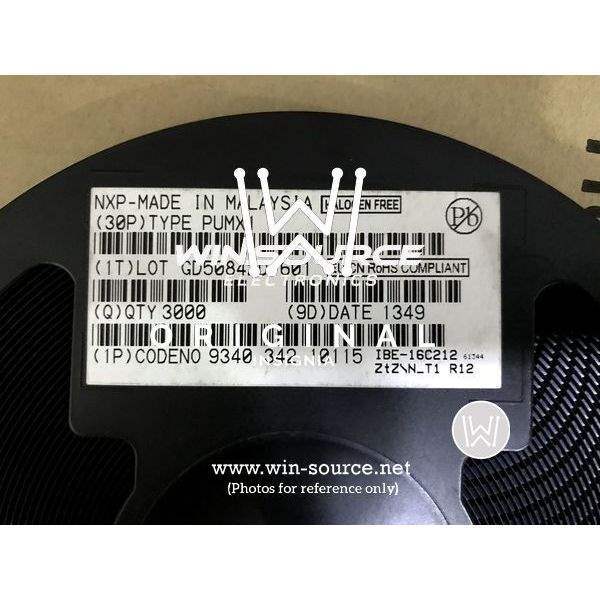

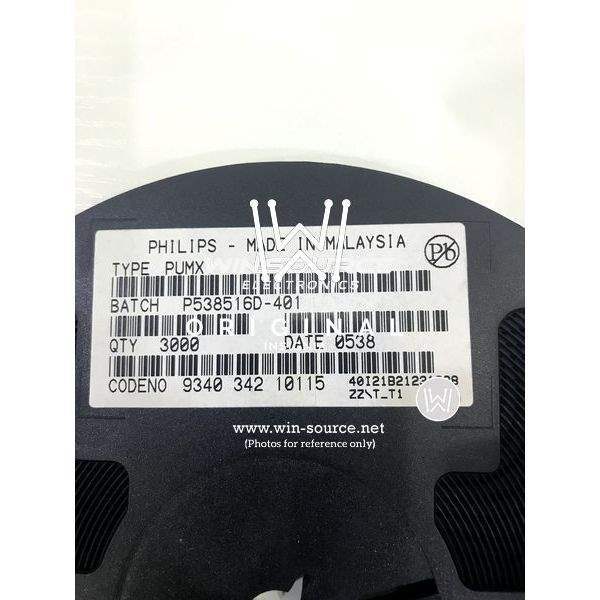

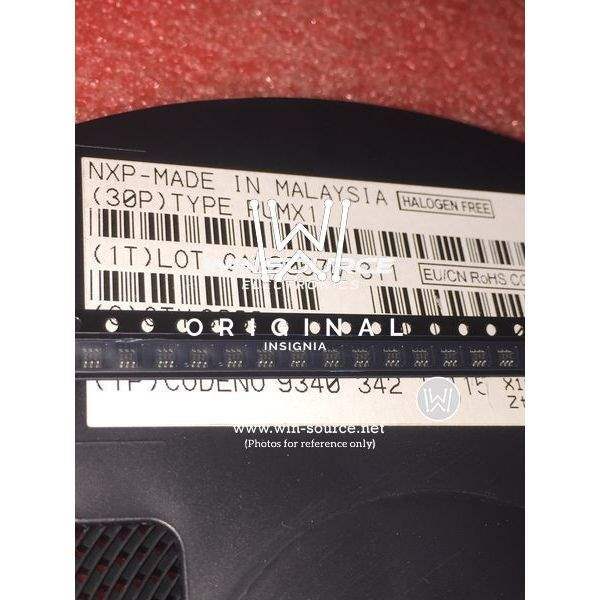

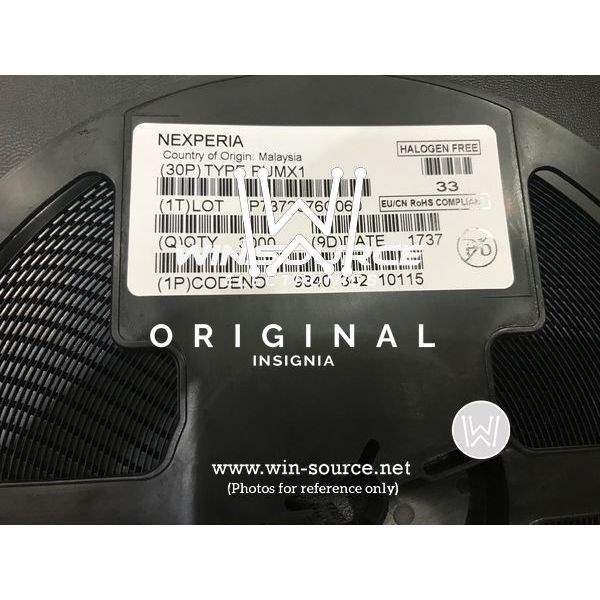

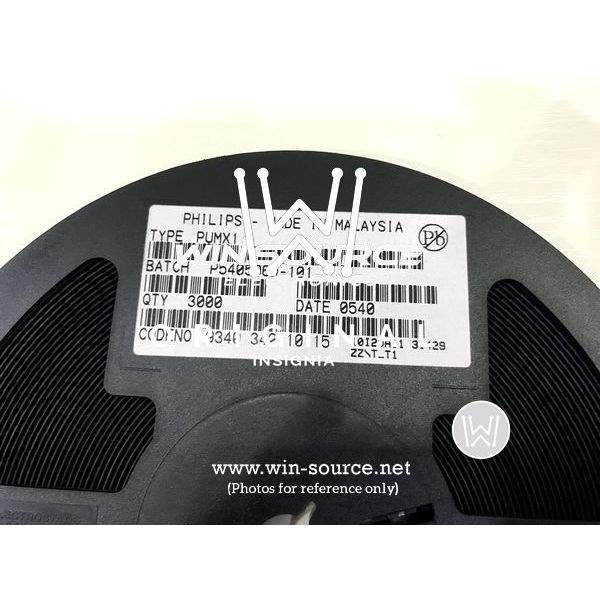

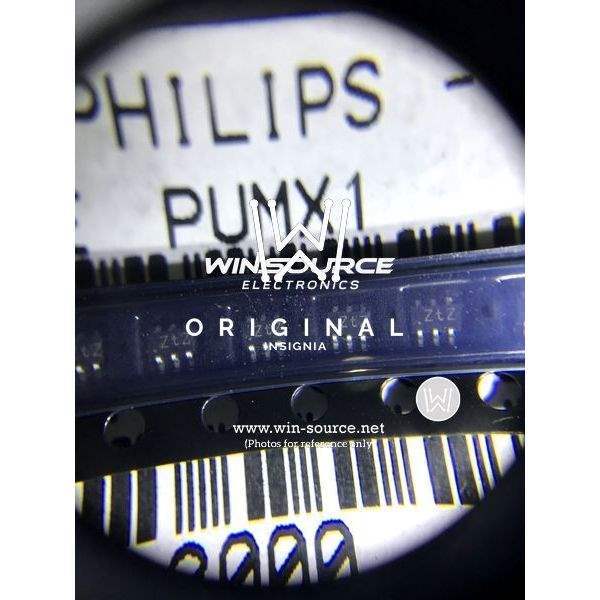

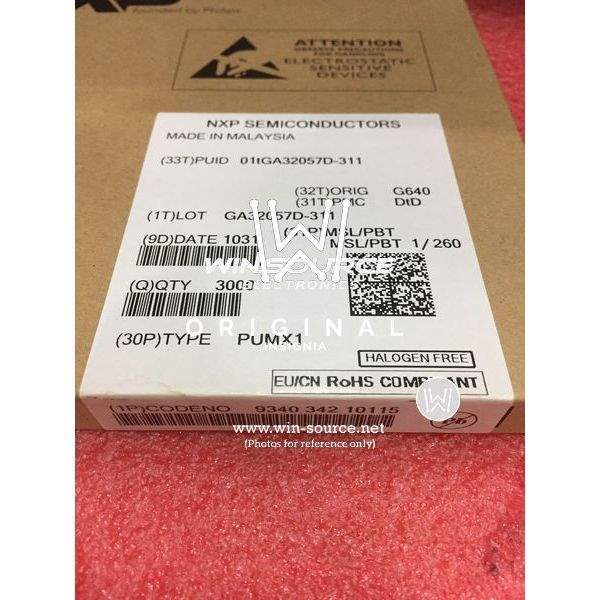

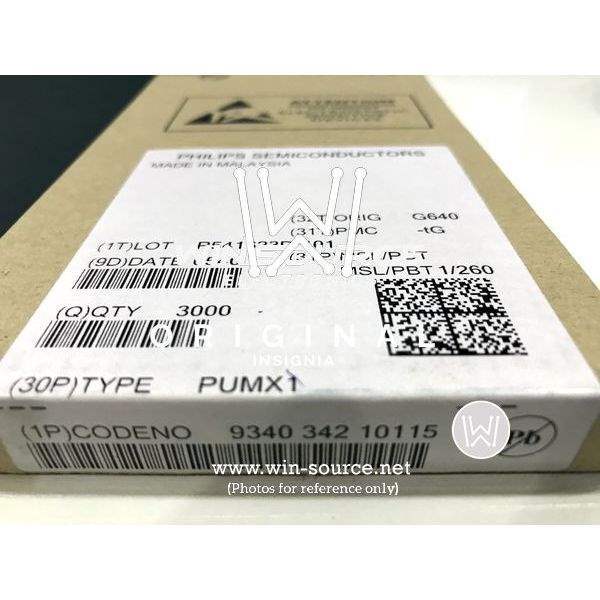

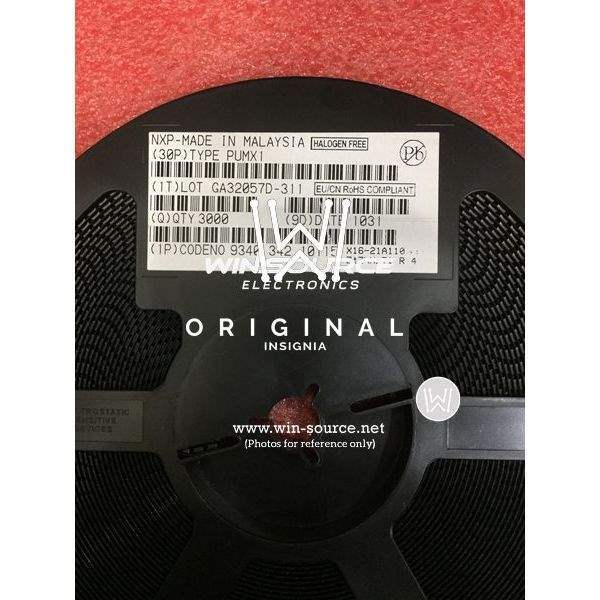

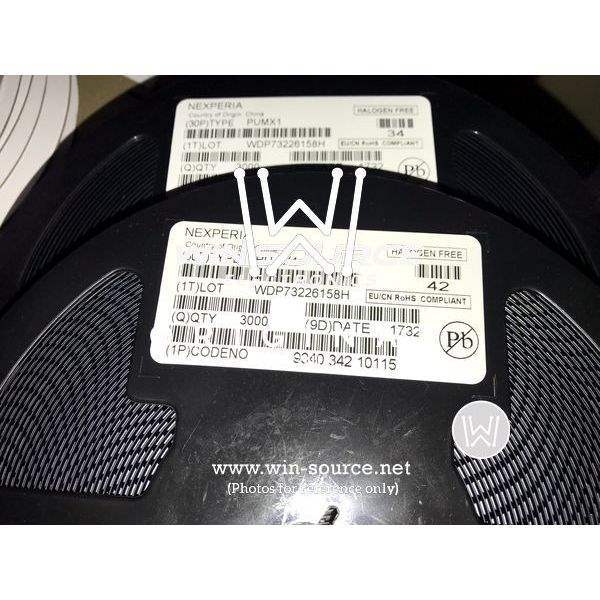

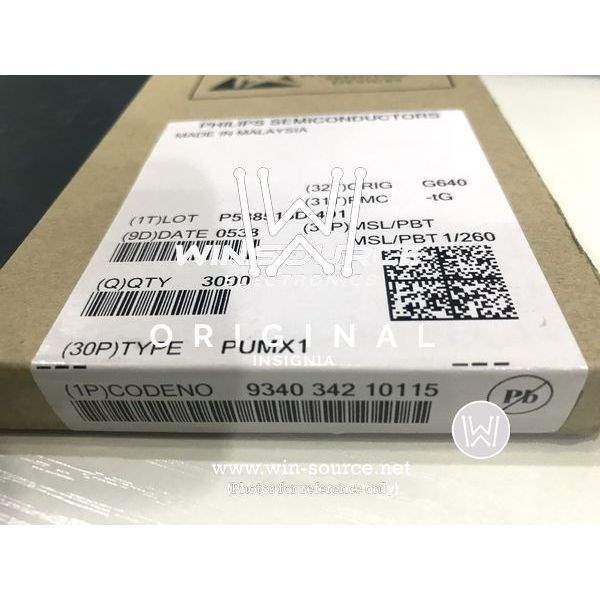

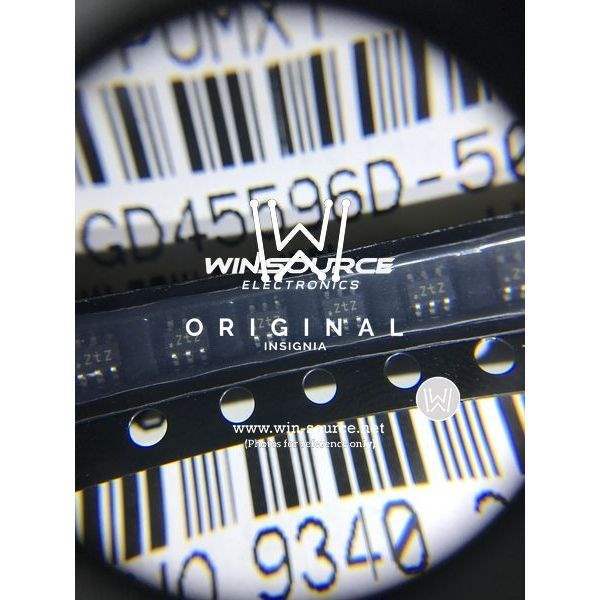

Same model may have multiple batches, images only for reference.
PUMX1,115 Nexperia USA Inc. PUMX1,115 label picture PUMX1,115 label picture 2 PUMX1,115 label picture 3 PUMX1,115 label picture 4 PUMX1,115 label picture 5 PUMX1,115 label picture 6 PUMX1,115 label picture 7 PUMX1,115 label picture 8 PUMX1,115 label picture 9 PUMX1,115 label picture 10 PUMX1,115 real image PUMX1,115 real image 2 PUMX1,115 real image 3
PUMX1,115 Nexperia USA Inc. PUMX1,115 label picture PUMX1,115 label picture 2 PUMX1,115 label picture 3 PUMX1,115 label picture 4 PUMX1,115 label picture 5 PUMX1,115 label picture 6 PUMX1,115 label picture 7 PUMX1,115 label picture 8 PUMX1,115 label picture 9 PUMX1,115 label picture 10 PUMX1,115 real image PUMX1,115 real image 2 PUMX1,115 real image 3
Same model may have multiple batches, images only for reference.

PUMX1,115

Part No PUMX1,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Arrays
Description TRANS 2NPN 40V 0.1A 6TSSOP
Datasheet
PUMX1,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity 2 NPN (Dual)
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 200mV @ 5mA, 50mA
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 120 @ 1mA, 6V
Maximum Power Dissipation 300mW
Frequency - Transition 100MHz
Temperature Range - Operating 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-TSSOP, SC-88
Win Source Part Number 1090734-PUMX1,115
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PUMX1,115 CAD Model

Description

The PUMX1,115 is a dual NPN transistor with a maximum collector-emitter breakdown voltage of 40V from Nexperia.

  • Maximum Collector-Emitter Breakdown Voltage: 40V
  • Maximum Collector Current: 100mA
  • Maximum Power Dissipation: 300mW
  • Package: 6-TSSOP, SC-88
  • Mounting: SMD technology
  • Typical Gain: 120 @ 1mA and 6V
  • Maximum Junction Temperature: 150°C
  • Frequency Transition: 100MHz
  • Popularity: Popular
  • Supply and Demand Status: Balanced
