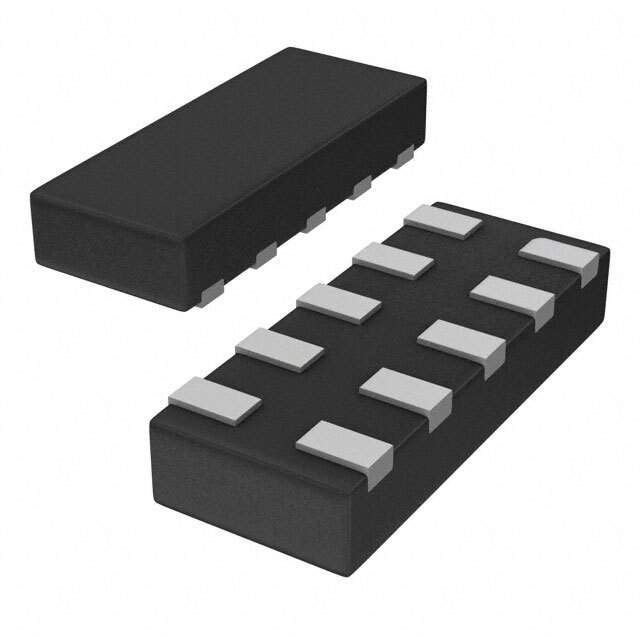

PUSB3F96X Real Image
Same model may have multiple batches, images only for reference.

PUSB3F96X

Part No PUSB3F96X
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 4.6VC DFN2510A
Datasheet
PUSB3F96X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features 4.6V (Typ) Clamp 5.2A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 10-XFDFN
Case / Package DFN2510A-10
Family Name PUSB3F96
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 1727-2030-2, 568-12159-2, 568-12159-1, PUSB3F96X-ND, 568-12159-1-ND, 568-12159-2-ND, 1727-2030-1, 1727-2030-6, 568-12159-6, PUSB3F96, 568-12159-6-ND, 934067685115
Quantity per package 5000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890472-PUSB3F96X
Ultra Librarian 3D Model Ultra Librarian PUSB3F96X CAD Model

Description

The Nexperia PUSB3F96X is a surface-mount TVS diode designed for circuit protection applications.

  • Clamp Voltage: 4.6V (typical)
  • Peak Pulse Current: 5.2A (8/20μs)
  • Package: DFN2510A-10
  • Operating Temperature: -40°C to 85°C
  • Quantity per Package: 5000
  • Estimated Production Lead Time: 19 weeks
  • REACH: Unaffected
  • HTSUS Code: 8541.10.0080
  • Family Name: PUSB3F96
