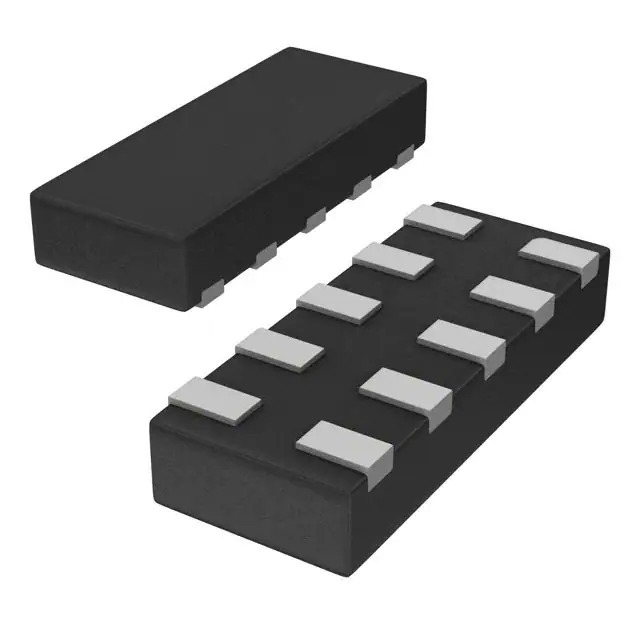

Same model may have multiple batches, images only for reference.

PUSB3FA2Z

Name: PUSB3FA2Z
Brand: Nexperia USA Inc.
SKU: 1362298
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PUSB3FA2Z
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VC DFN2510A-10 / 5V (Typ) Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Datasheet	PUSB3FA2Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Series	-
Package	Tape & Reel
Product Status	Active
Type	Zener
Bidirectional Channels	4
Voltage - Reverse Standoff (Typ)	-
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	5V (Typ)
Current - Peak Pulse (10/1000µs)	7A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.17pF @ 1MHz
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	DFN2510A-10
Base Product Number	PUSB3
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362298-PUSB3FA2Z
Ultra Librarian 3D Model	Ultra Librarian PUSB3FA2Z CAD Model

Alternative Products

Description

The PUSB3FA2Z is a transient voltage suppressor (TVS) diode designed for circuit protection applications from Nexperia USA Inc.

Temperature Range: -40°C to 85°C
Application: TVS Diode
Breakdown Voltage: 5.5V
Clamping Voltage: 5V @ 8/20μs Peak Pulse Current
Channel Configuration: Bidirectional
Channels: 4
Mounting Type: Surface Mount
Package: 10-XFDFN
REACH: Unaffected
ECCN: EAR99
Series: PUSB3
Packaging: Tape & Reel
Status: Active
