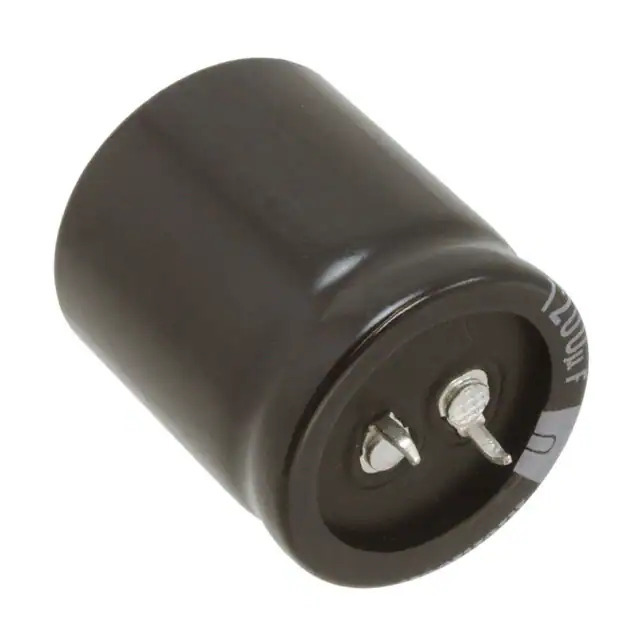

Same model may have multiple batches, images only for reference.
LGG2W331MELB35 Nichicon
Same model may have multiple batches, images only for reference.

LGG2W331MELB35

Part No LGG2W331MELB35
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 450V SNAP / 330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Datasheet
LGG2W331MELB35 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGG
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 1.716 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360770-LGG2W331MELB35
Ultra Librarian 3D Model Ultra Librarian LGG2W331MELB35 CAD Model

Description

The 1360770-LGG2W331MELB35 is an aluminum electrolytic capacitor from Nichicon.

  • Series: LGG
  • Capacitance: 330µF
  • Operating Temperature: -25°C to 105°C
  • Mounting Type: Through Hole
  • Package: Bulk
  • Voltage Rating: 450V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • Application: General Purpose
  • Ripple Current (Low Frequency): 1.2A @ 120Hz
  • Ripple Current (High Frequency): 1.716A @ 50kHz
  • Size: 1.181" Dia (30.00mm)
  • Maximum Seated Height: 1.457" (37.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
