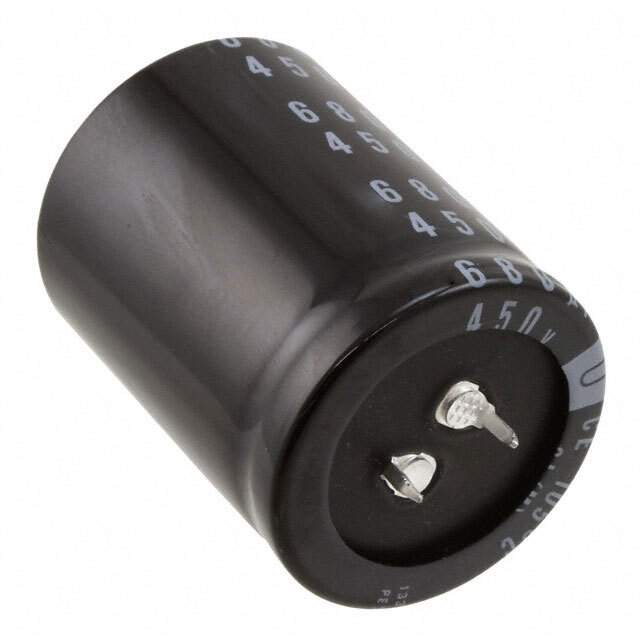

Same model may have multiple batches, images only for reference.

LGL2W681MELC45

Name: LGL2W681MELC45
Brand: Nichicon
SKU: 1340817
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LGL2W681MELC45
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 680UF 20% 450V SNAP / 680 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Datasheet	LGL2W681MELC45 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGL
Package	Bulk
Capacitance	680 µF
Tolerance	±20%
Voltage - Rated	450 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.77 A @ 120 Hz
Ripple Current @ High Frequency	2.5311 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1340817-LGL2W681MELC45
Ultra Librarian 3D Model	Ultra Librarian LGL2W681MELC45 CAD Model

Alternative Products

Description

The Nichicon LGL2W681MELC45 aluminum electrolytic capacitor is a radial, can-snap-in package with a capacitance of 680 µF and a voltage rating of 450 V.

Capacitance: 680 µF
Voltage Rating: 450 V
Tolerance: ±20%
Lifetime: 2000 hours @ 105°C
Package: Bulk
Standard Package: 200
Application: General Purpose
Ripple Current: 1.77 A @ 120 Hz, 2.5311 A @ 50 kHz
