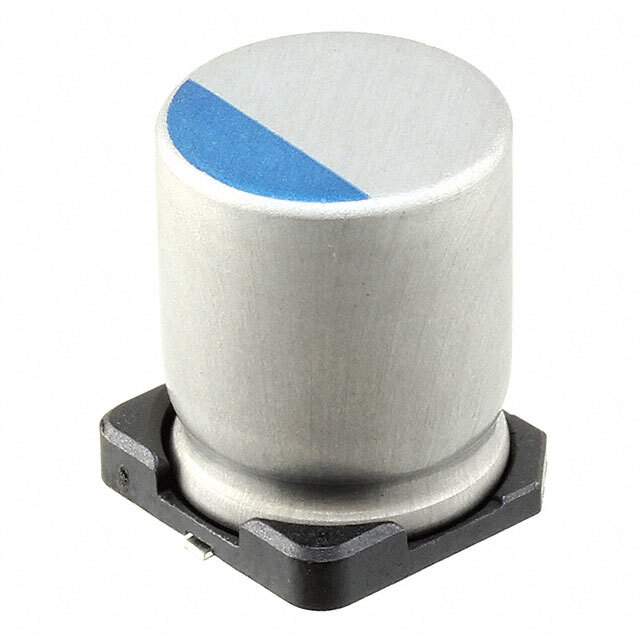

PCR1J101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

PCR1J101MCL1GS

Part No PCR1J101MCL1GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCR
Package Tape & Reel
Type Polymer
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 24mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 493-13783-6,493-13783-2,493-13783-1
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308437-PCR1J101MCL1GS
Ultra Librarian 3D Model Ultra Librarian PCR1J101MCL1GS CAD Model

Description

The PCR1J101MCL1GS is an aluminum-polymer capacitor manufactured by Nichicon.

  • Capacitance: 100µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Series: PCR
  • Type: Polymer
  • Application: Automotive
  • Mounting Type: Surface Mount Device (SMD)
  • ESR: 24mOhm
  • Lifetime: 4000 hours @ 125°C
  • Package/Case Size: Radial, can-SMD
  • Diameter: 0.394" (10.00mm)
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • ECCN: EAR99
  • HTSUS: 8532.22.0020
