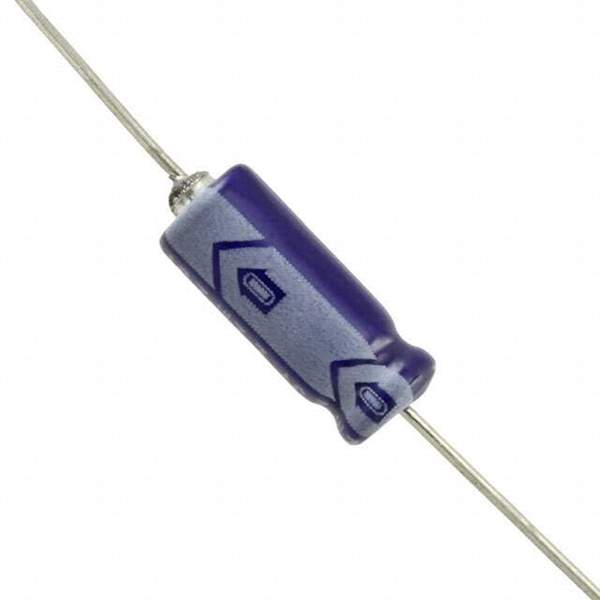

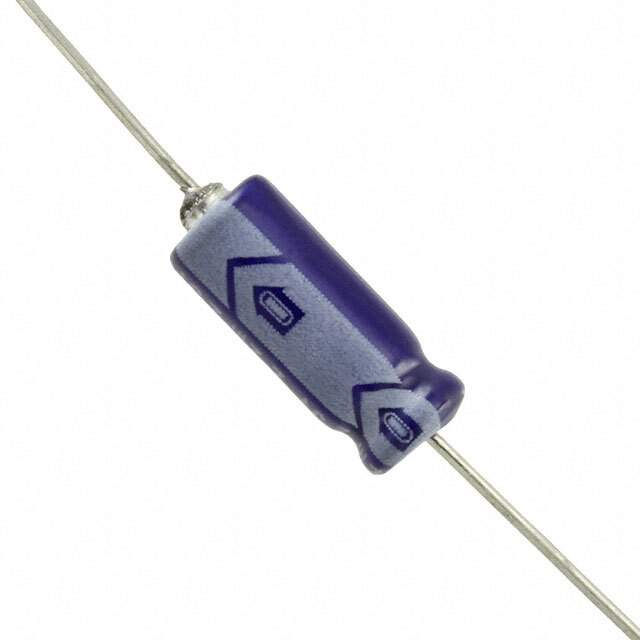

Same model may have multiple batches, images only for reference.

TVX2A220MAD1LS

Get a Quote

Part No	TVX2A220MAD1LS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 100V AXIAL / 22 µF 100 V Aluminum Electrolytic Capacitors Axial, Can 2000 Hrs @ 85°C
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	TVX
Package	Tape & Reel (TR)
Product Status	Obsolete
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	120 mA @ 120 Hz
Ripple Current @ High Frequency	240 mA @ 10 kHz
Dimension	0.315" Dia x 0.630" L (8.00mm x 16.00mm)
Mounting Type	Through Hole
Package / Case	Axial, Can
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-TVX2A220MAD1LSTR
Standard Package	1,000
Win Source Part Number	1101621-TVX2A220MAD1LS
Ultra Librarian 3D Model	Ultra Librarian TVX2A220MAD1LS CAD Model

Alternative Products

Description

The TVX series aluminum electrolytic capacitor from Nichicon is designed for general-purpose applications.

Capacitance: 22 µF
Voltage Rating: 100 V
Tolerance: ±20%
Ripple Current: 120 mA @ 120 Hz and 240 mA @ 10 kHz
ESR: Not specified
Lifetime: 2000 hours @ 85°C
Polarization: Polarized
Package/Case: Axial, Can
Mounting Type: Through-Hole
Dimensions: 0.315" Dia x 0.630" L (8.00mm x 16.00mm)
Alternative Parts (Cross-Reference): 493-TVX2A220MAD1LSTR
