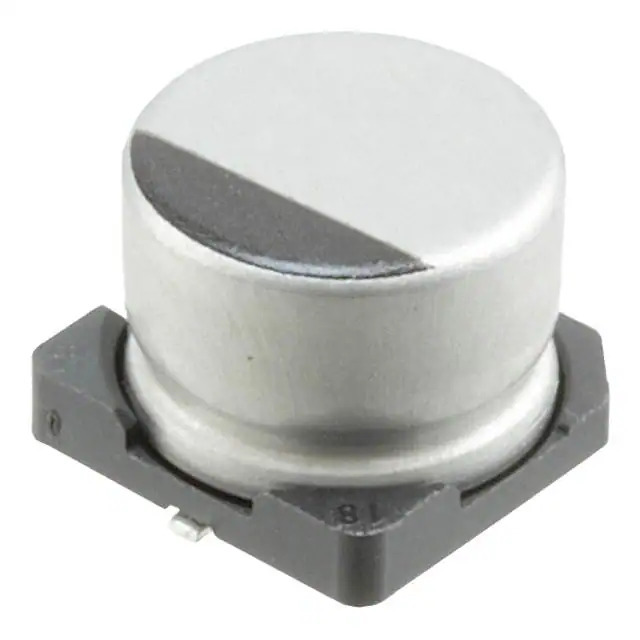

Same model may have multiple batches, images only for reference.

UCD1J220MCL6GS

Name: UCD1J220MCL6GS
Brand: Nichicon
SKU: 1360201
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCD1J220MCL6GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 63V SMD / 22 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UCD1J220MCL6GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCD
Package	Tape & Reel
Product Status	Active
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	60 mA @ 120 Hz
Ripple Current @ High Frequency	120 mA @ 100 kHz
Impedance	1.2 Ohms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.256" (6.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360201-UCD1J220MCL6GS
Ultra Librarian 3D Model	Ultra Librarian UCD1J220MCL6GS CAD Model

Alternative Products

Description

The UCD1J220MCL6GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon.

Capacitance: 22µF
Voltage Rating: 63V
Application: Automotive
Operating Temperature: -55°C ~ 105°C
Lifetime @ Temp.: 2000 Hrs @ 105°C
Size / Dimension: 0.315" Dia (8.00mm)
Height - Seated (Max): 0.256" (6.50mm)
Ripple Current @ Low Frequency: 60mA @ 120Hz
Ripple Current @ High Frequency: 120mA @ 100kHz
Packaging: Tape & Reel (TR)
Product Status: Active
MSL: Unlimited
REACH Status: Unaffected
Tolerance: ±20%
Polarization: Polar
AEC-Q200: Yes
