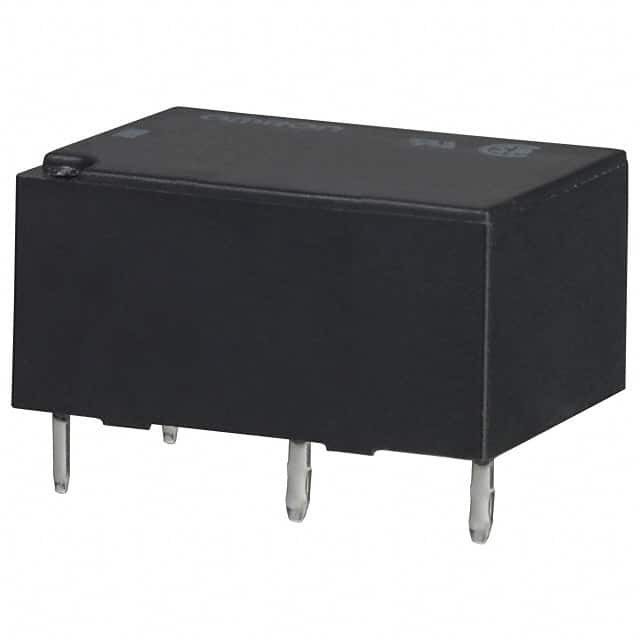

Same model may have multiple batches, images only for reference.
G6CU-2114P-US DC3 Omron
Same model may have multiple batches, images only for reference.

G6CU-2114P-US DC3

Part No G6CU-2114P-US DC3
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Datasheet
G6CU-2114P-US DC3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G6C
Package Bulk
Mounting Type Through Hole
Coil Voltage 3VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 67 mA
Coil Type Latching, Single Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 2.1 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -25°C ~ 70°C
Contact Material Silver Alloy, Cadmium Free
Relay Type General Purpose
Coil Resistance 45 Ohms
Base Product Number G6C
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1316048-G6CU-2114P-US DC3
Ultra Librarian 3D Model Ultra Librarian G6CU-2114P-US DC3 CAD Model

Description

The Omron G6CU-2114P-US DC3 relay is a power relay that can handle over 2 amps of current.

  • Contact Form: DPST-NO/NC
  • Contact Material: Silver Alloy, Cadmium-Free
  • Switching Voltage: 250VAC and 125VDC
