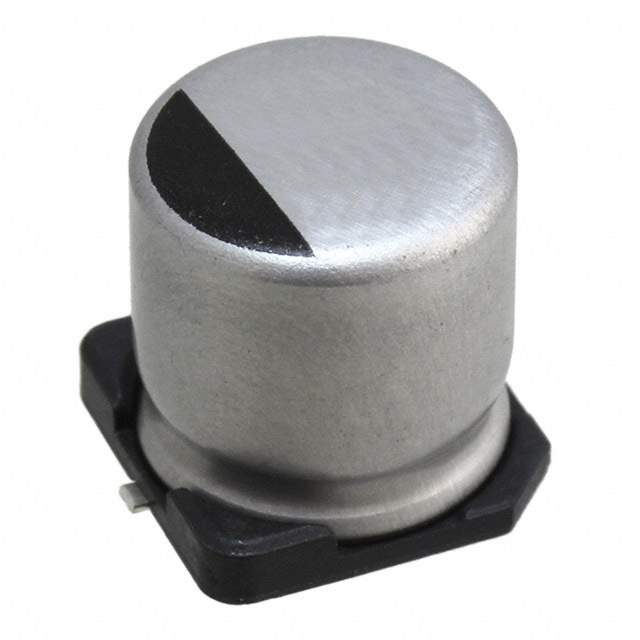

Same model may have multiple batches, images only for reference.

UCX1E331MCL1GS

Name: UCX1E331MCL1GS
Brand: Nichicon
SKU: 1349858
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UCX1E331MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 25V SMD / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 150mOhm 2000 Hrs @ 135°C
Datasheet	UCX1E331MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UCX
Package	Tape & Reel
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	150mOhm
Lifetime @ Temp.	2000 Hrs @ 135°C
Temperature Range - Operating	-40°C ~ 135°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	250 mA @ 120 Hz
Ripple Current @ High Frequency	500 mA @ 100 kHz
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1349858-UCX1E331MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UCX1E331MCL1GS CAD Model

Alternative Products

Description

The UCX series aluminum electrolytic capacitor from Nichicon is a general-purpose capacitor designed for various applications. UCX Series manufactured by Nichicon.

Capacitance: 330 µF
Voltage Rating: 25 V
Tolerance: ±20%
ESR: 150mOhm
Lifetime: 2000 hours @ 135°C
Polarization: Polarized
Land Size: 0.406” L x 0.406” W (10.30mm x 10.30mm)
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Operating Temperature: -40°C to 135°C
