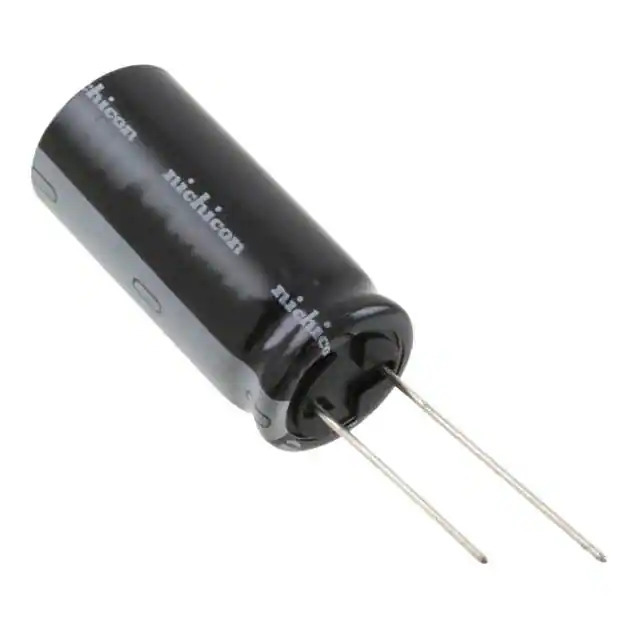

Same model may have multiple batches, images only for reference.

UHW1J152MHD

Name: UHW1J152MHD
Brand: Nichicon
SKU: 1357865
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UHW1J152MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1500UF 20% 63V RADIAL / 1500 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Datasheet	UHW1J152MHD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UHW
Package	Bulk
Product Status	Not For New Designs
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.86 A @ 120 Hz
Ripple Current @ High Frequency	3.1 A @ 100 kHz
Impedance	23 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357865-UHW1J152MHD
Ultra Librarian 3D Model	Ultra Librarian UHW1J152MHD CAD Model

Alternative Products

Description

The UHW1J152MHD is an aluminum electrolytic capacitor from Nichicon's UHW series.

Capacitance: 1500 μF
Voltage: 63V
Tolerance: ±20%
Ripple Current (120 Hz): 1.86 A
Ripple Current (100 kHz): 3.1 A
Lead Spacing: 7.50mm
Size: 0.630" Diameter
Mounting: Through-Hole
Lifetime: 10000 hours @ 105°C
Polarization: Polarized
Package: Radial, Can
Status: Not Recommended for New Designs
