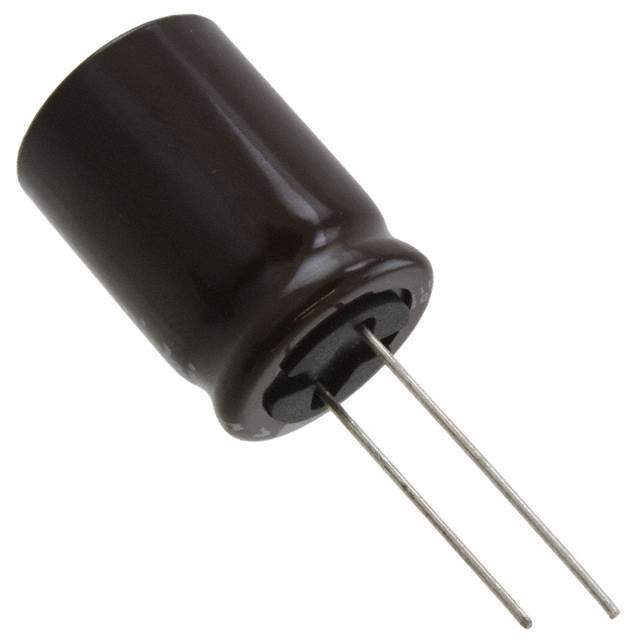

Same model may have multiple batches, images only for reference.

UPJ1H102MHD6

Name: UPJ1H102MHD6
Brand: Nichicon
SKU: 968850
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPJ1H102MHD6
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 50V RADIAL / 1000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet	UPJ1H102MHD6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPJ
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.73 A @ 120 Hz
Ripple Current @ High Frequency	2 A @ 10 kHz
Impedance	36 mOhms
Lead Spacing	0.295" (7.50mm)
Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UPJ1H102MHD6-ND,493-15637
Standard Package	300
Win Source Part Number	968850-UPJ1H102MHD6
Ultra Librarian 3D Model	Ultra Librarian UPJ1H102MHD6 CAD Model

Alternative Products

Description

The UPJ1H102MHD6 is an aluminum electrolytic capacitor from Nichicon.

Capacitance: 1000 µF
Tolerance: ±20%
Voltage Rating: 50V
Lead Spacing: 0.295" (7.50mm)
Ripple Current @ Low Frequency: 1.73 A @ 120 Hz
Ripple Current @ High Frequency: 2 A @ 10 kHz
Lifetime @ Temp.: 5000 Hrs @ 105°C
Polar: Yes
Package: Radial, Can
Mounting Type: Through-Hole
Temperature Range: -55°C to 105°C
