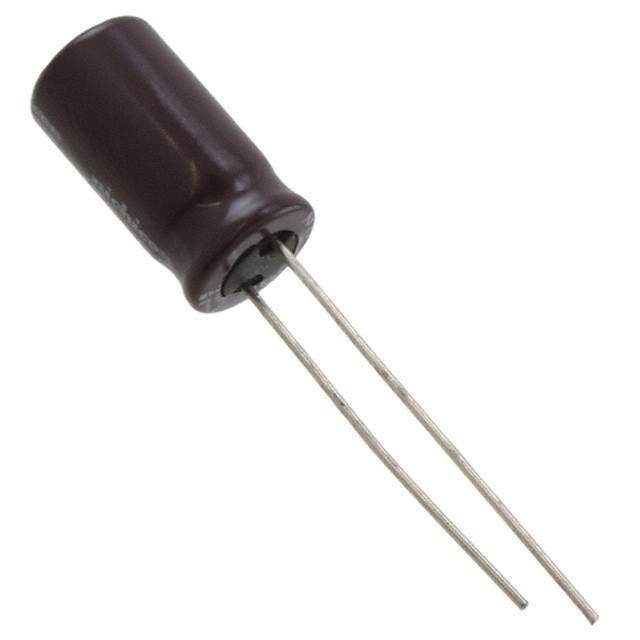

UPM1V121MPD Real Image
Same model may have multiple batches, images only for reference.

UPM1V121MPD

Part No UPM1V121MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 120UF 20% 35V RADIAL  /  120 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPM
Package Bulk
Product Status Not For New Designs
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 370 mA @ 120 Hz
Ripple Current @ High Frequency 550 mA @ 10 kHz
Impedance 140 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UPM1V121MPD-ND,UPM1V121MPD-NDL,493-15778,Q6236986
Standard Package 2,000
Win Source Part Number 1051052-UPM1V121MPD
Ultra Librarian 3D Model Ultra Librarian UPM1V121MPD CAD Model

Description

The Nichicon UPM series is a range of aluminum electrolytic capacitors that are designed for general-purpose applications.

  • Capacitance: 120 µF
  • Rated voltage: 35 V
  • Tolerance: ±20%
  • Impedance: 140 mOhms
  • Lifetime: 3000 hours @ 105°C
  • Polarized: Yes
  • Mounting type: through-hole
  • Radial can Lead spacing: 0.138" (3.50mm)
  • Diameter: 0.315" (8.00mm)
  • Height: 0.650" (16.50mm)
  • Ripple current: 370 mA @ 120 Hz and 550 mA @ 10 kHz
  • UPM1V121MPD Alternative to: EEU-FM1H121L, UPM1E121MED, UPW1E121MED, EEU-FC1J121, UPM1H121MPD1TD, and EEU-FM1C121
