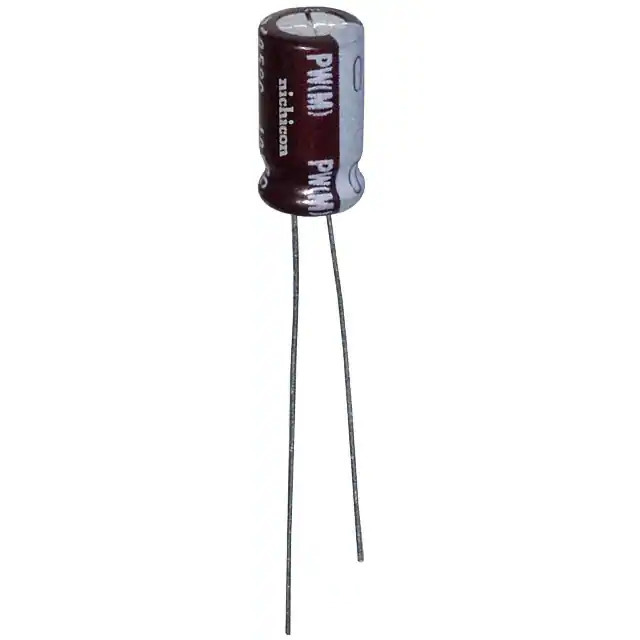

Same model may have multiple batches, images only for reference.

UPW1A221MED

Name: UPW1A221MED
Brand: Nichicon
SKU: 1357680
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UPW1A221MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 10V RADIAL / 220 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Datasheet	UPW1A221MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Obsolete
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	10 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	188.5 mA @ 120 Hz
Ripple Current @ High Frequency	290 mA @ 100 kHz
Impedance	250 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357680-UPW1A221MED
Ultra Librarian 3D Model	Ultra Librarian UPW1A221MED CAD Model

Alternative Products

Description

The UPW1A221MED is a radial, can-type aluminum electrolytic capacitor from Nichicon's UPW series.

Capacitance: 220 µF
Voltage Rating: 10 V
Tolerance: ±20%
Applications: general-purpose
Ripple Current (Low Frequency): 188.5 mA @ 120 Hz
Ripple Current (High Frequency): 290 mA @ 100 kHz
Lead Spacing: 0.098" (2.50mm)
Size/Dimension: 0.248" Dia (6.30mm)
Height Seated: 0.433" (11.00mm)
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
Mounting Type: through hole
Status: Obsolete
REACH: Unaffected
