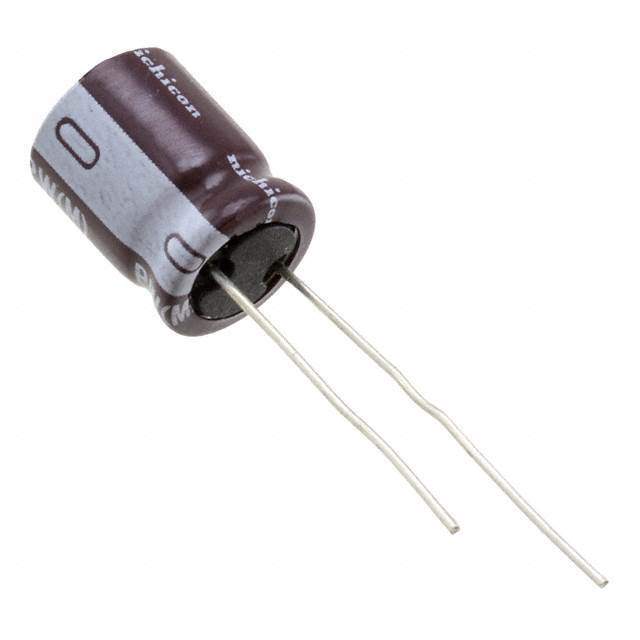

UPW1E331MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UPW1E331MPD1TD

Part No UPW1E331MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V RADIAL
Datasheet
UPW1E331MPD1TD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging AMMO PACKAGE
Status Active
Capacitance 330μF
Tolerance ±20%
Voltage Rating 25V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 494mA @ 120Hz
Ripple Current - High Frequency 760mA @ 100kHz
Impedance 90 mOhm
Lead Spacing 0.197" (5.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Through Hole
Dimension Radial, Can
Win Source Part Number 1116680-UPW1E331MPD1TD
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UPW1E331MPD1TD CAD Model

Description

The Nichicon UPW1E331MPD1TD is a through-hole aluminum electrolytic capacitor with a capacitance of 330µF and a voltage rating of 25V.

  • Capacitance: 330µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • Impedance: 90 mOhm
  • Ripple Current (Low Frequency): 494mA @ 120Hz
  • Ripple Current (High Frequency): 760mA @ High Frequency
  • Lifetime: 5000 hours @ 105°C
  • Operating Temperatures: -55°C to 105°C
  • Polarity: Polar
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: Radial, Can
  • Packaging: Ammo
  • Compliance: RoHS3
  • Mounting: Through-hole
