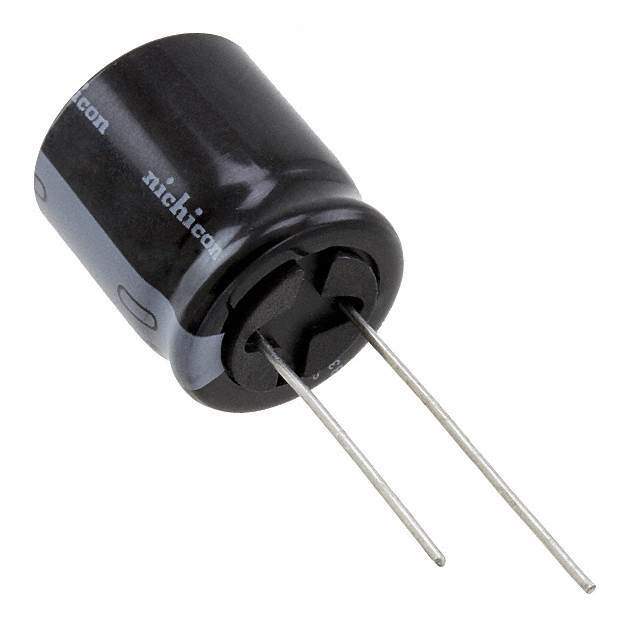

URS1C472MHD1TN Real Image
Same model may have multiple batches, images only for reference.

URS1C472MHD1TN

Part No URS1C472MHD1TN
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4700UF 20% 16V RADIAL / 4700 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet
URS1C472MHD1TN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series URS
Package Cut Tape (CT),Tape & Box (TB)
Capacitance 4700 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.77 A @ 120 Hz
Ripple Current @ High Frequency 2.0355 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-12300-3,493-12300-1
Standard Package 250
Win Source Part Number 984886-URS1C472MHD1TN
Ultra Librarian 3D Model Ultra Librarian URS1C472MHD1TN CAD Model

Description

The Nichicon URS series Capacitor is a high-quality aluminum electrolytic capacitor that is designed for general-purpose applications.

  • Capacitance: 4700 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • ESR: Not specified
  • Polarization: Polarized
  • Mounting Type: Through-hole
  • Package: Radial, can-shaped
  • Diameter: 0.709 inches (18.00mm)
  • Height: 0.866 inches (22.00mm)
  • Lead Spacing: 0.295 inches (7.50mm)
  • Lifetime: 2000 hours @ 85°C
  • Ripple Current (120 Hz): 1.77 A
  • Ripple Current (10 kHz): 2.0355 A
  • Packaging Options: Cut tape (CT) and tape & box (TB)
