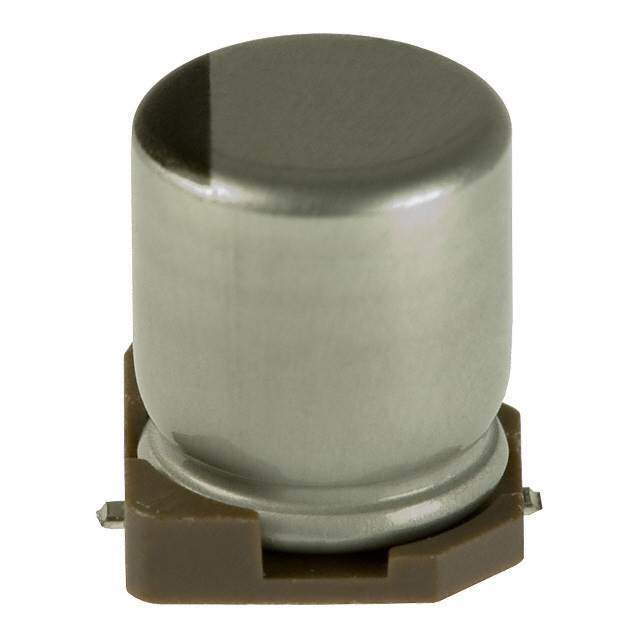

UUD1E101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1E101MCL1GS

Part No UUD1E101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 25V SMD / 100 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Reel - TR
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-2276-1,493-2276-2,Q3986578,493-2276-6
Standard Package 900
Win Source Part Number 1331113-UUD1E101MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1E101MCL1GS CAD Model

Description

The Nichicon UUD1E101MCL1GS is a surface mount aluminum electrolytic capacitor.

  • Capacitance: 100 µF
  • Voltage Rating: 25V
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Application: Automotive applications
  • Size: 0.248" Dia (6.30mm)
  • Height: 0.315" (8.00mm)
  • Impedance: 340 mOhms
  • ESR: 0
  • Polarization: Polarized
  • Package: Radial, Can - SMD
  • Standard Package: 900
  • ROHS3 Compliant: Yes
  • REACH Status: Unaffected
