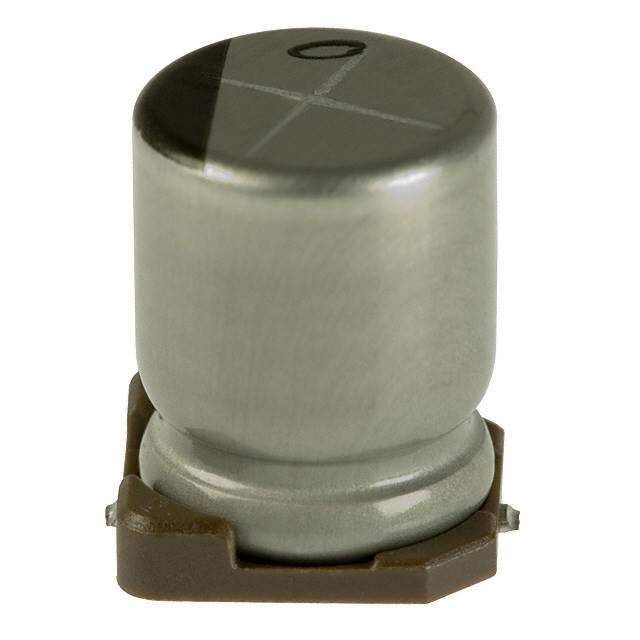

UUD1V101MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1V101MNL1GS

Part No UUD1V101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V SMD  /  100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUD
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 225 mA @ 120 Hz
Ripple Current @ High Frequency 450 mA @ 100 kHz
Impedance 170 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-2290-2,493-2290-1,493-2290-6,Q7756794E
Standard Package 500
Win Source Part Number 1153190-UUD1V101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUD1V101MNL1GS CAD Model

Description

The UUD1V101MNL1GS from Nichicon is a high-quality aluminum electrolytic capacitor that is ideal for use in automotive applications.

  • Application: Automotive
  • Capacitance: 100 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 170 mOhms
  • Ripple Current @ Frequency: 225 mA @ 120 Hz, 450 mA @ 100 kHz
  • Lifetime @ Temperature: 5000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height When Seated: 0.394" (10.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
