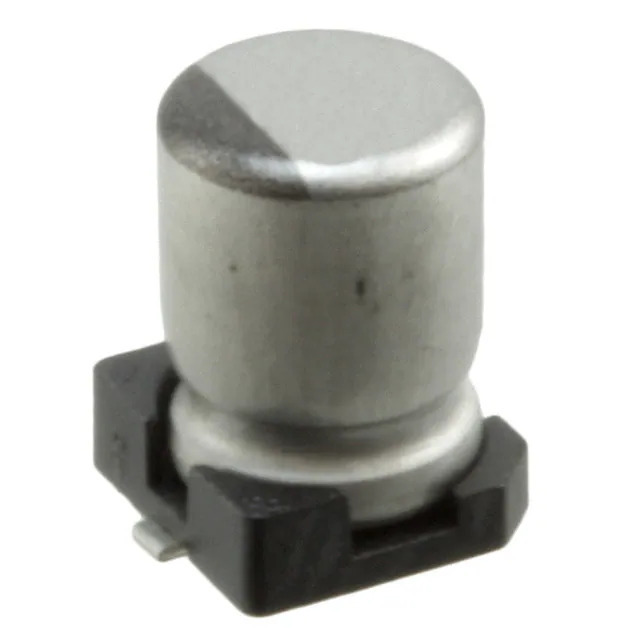

Same model may have multiple batches, images only for reference.
UUT1C100MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UUT1C100MCL1GS

Part No UUT1C100MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD / 10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUT1C100MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUT
Package Tape & Reel
Product Status Last Time Buy
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 18 mA @ 120 Hz
Ripple Current @ High Frequency 27 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360370-UUT1C100MCL1GS
Ultra Librarian 3D Model Ultra Librarian UUT1C100MCL1GS CAD Model

Description

The UUT series aluminum electrolytic capacitor is a general-purpose capacitor designed for a wide range of applications from Nichicon.

  • Series: UUT
  • Capacitance: 10 µF
  • Voltage Rating: 16 V
  • Tolerance: ±20%
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Ripple Current - Low Frequency: 18 mA @ 120 Hz
  • Ripple Current - High Frequency: 27 mA @ 10 kHz
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.157" Dia (4.00mm)
  • Height - Seated (Max): 0.240" (6.10mm)
  • REACH Status: Unaffected
  • ECCN: EAR99
  • Polarization: Polarized
