Same model may have multiple batches, images only for reference.

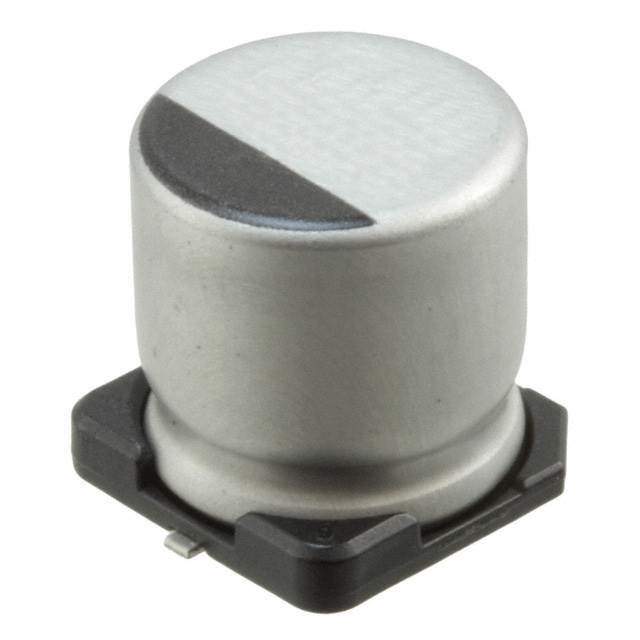

UUX2G4R7MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUX2G4R7MNL1GS

Part No UUX2G4R7MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Datasheet
UUX2G4R7MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUX
Package Tape & Reel
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 40 mA @ 120 Hz
Ripple Current @ High Frequency 66.8 mA @ 10 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 493-9990-6,493-9990-1,493-9990-2,Q8136221
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307338-UUX2G4R7MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUX2G4R7MNL1GS CAD Model

Description

The Nichicon UUX2G4R7MNL1GS capacitor is an aluminum electrolytic capacitor that has a capacitance of 4.7 µF and a voltage rating of 400 V.

  • Capacitance: 4.7 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • ESR: Not specified
  • Polarized: Yes
  • Ripple Current (Low Frequency): 40 mA
  • Ripple Current (High Frequency): 66.8 mA
  • Lifetime: 3000 hours @ 105°C
  • Application: General-Purpose
  • Package: Radial can - SMD
  • Mounting: Surface Mount
  • Diameter: 0.394" (10.00mm)
  • Height: 0.413" (10.50mm)
  • ROHS3 Compliant: Yes
  • Status: Not for new designs
