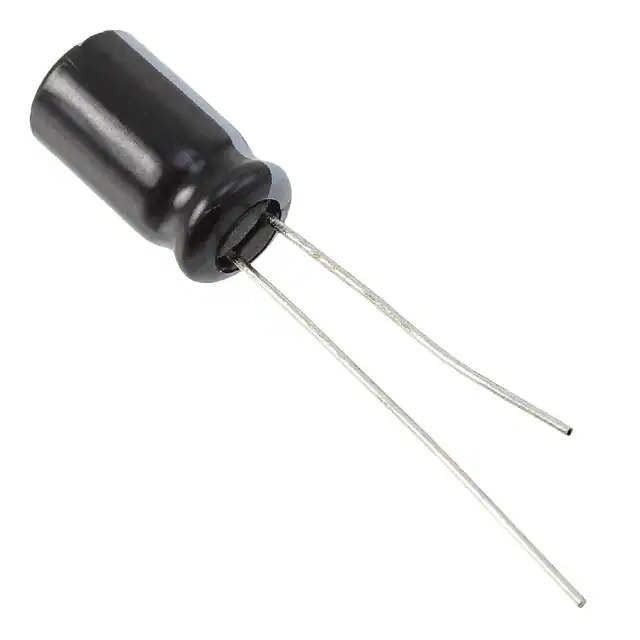

Same model may have multiple batches, images only for reference.

UVK1V101MED

Name: UVK1V101MED
Brand: Nichicon
SKU: 1357946
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVK1V101MED
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V RADIAL / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Datasheet	UVK1V101MED Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVK
Package	Bulk
Product Status	Obsolete
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	210 mA @ 120 Hz
Ripple Current @ High Frequency	315 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357946-UVK1V101MED
Ultra Librarian 3D Model	Ultra Librarian UVK1V101MED CAD Model

Description

The UVK1V101MED is an aluminum electrolytic capacitor from Nichicon's UVK series.

Capacitance: 100 µF
Voltage - Rated: 35 V
Tolerance: ±20%
Lifetime @ Temp.: 2000 Hrs @ 85°C
Ripple Current @ Low Frequency: 210 mA @ 120 Hz
Ripple Current @ High Frequency: 315 mA @ 100 kHz
Mounting Type: Through Hole
Package / Case: Radial, Can
Size / Dimension: 0.248" Dia (6.30mm)
Height - Seated (Max): 0.492" (12.50mm)
Lead Spacing: 0.098" (2.50mm)
REACH Status: Unaffected
ECCN: EAR99
Status: Obsolete
