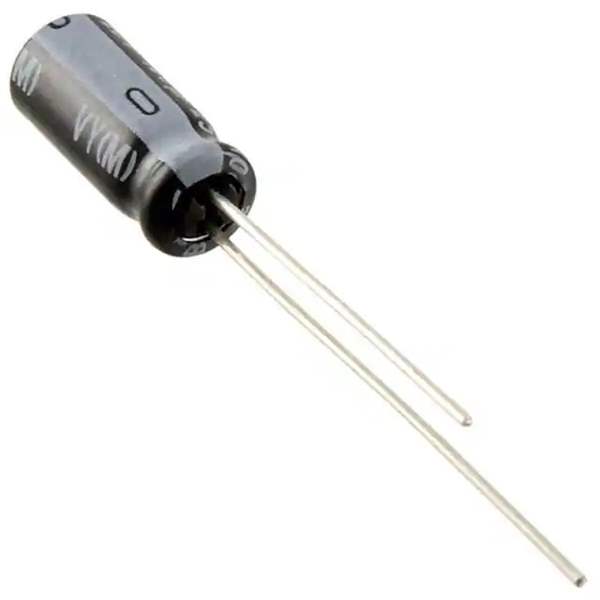

UVY2A100MDD Nichicon

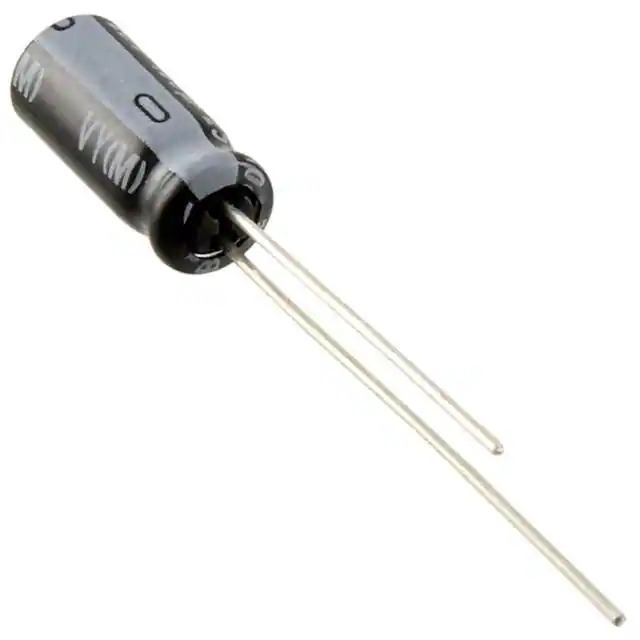

Same model may have multiple batches, images only for reference.

UVY2A100MDD

Part No UVY2A100MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 100V RADIAL / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVY2A100MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVY
Package Bulk
Product Status Not For New Designs
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 50 mA @ 120 Hz
Ripple Current @ High Frequency 100 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number UVY2A
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357706-UVY2A100MDD
Ultra Librarian 3D Model Ultra Librarian UVY2A100MDD CAD Model

Description

The Nichicon UVY series includes a range of aluminum electrolytic capacitors, with the UVY2A100MDD being a radial, can-type capacitor manufactured by Nichicon.

  • Capacitance: 10µF
  • Voltage - Rated: 100V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current @ Low Frequency: 50mA @ 120Hz
  • Ripple Current @ High Frequency: 100mA @ 10kHz
  • Height: 0.492" (12.50mm)
  • Diameter: 0.197" (5.00mm)
  • Mounting Type: Through Hole
