Same model may have multiple batches, images only for reference.

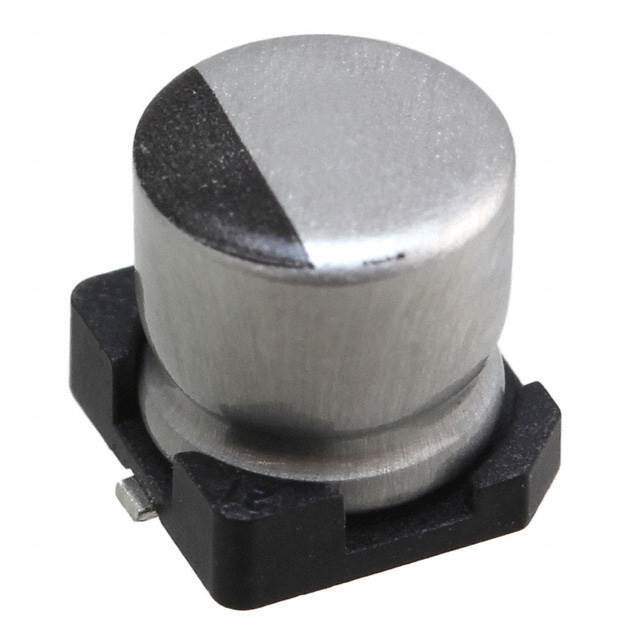

UWF0J470MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWF0J470MCL1GB

Part No UWF0J470MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 6.3V SMD  /  47 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWF
Package Tape & Reel
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 6.3 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ Low Frequency 40 mA @ 120 Hz
Ripple Current @ High Frequency 80 mA @ 100 kHz
Impedance 2.6 Ohms
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UWF0J470MCL1GB-ND,493-9701-6,493-9701-2,493-9701-1
Standard Package 1,000
Win Source Part Number 1178551-UWF0J470MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWF0J470MCL1GB CAD Model

Description

The Nichicon UWF0J470MCL1GB is a high-quality aluminum electrolytic capacitor that is ideal for use in a range of general-purpose applications.

  • Capacitance: 47 µF
  • Voltage Rating: 6.3 V
  • Tolerance: ±20%
  • Impedance: 2.6 Ohms
  • Ripple Current (Low Frequency): 40 mA
  • Ripple Current (High Frequency): 80 mA
  • Mounting: Surface Mountable
  • Package Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Temperature Range: -55°C ~ 105°C
  • Lifetime: 1000 Hrs @ 105°C
  • Manufacturer: Nichicon
  • Popularity: High
