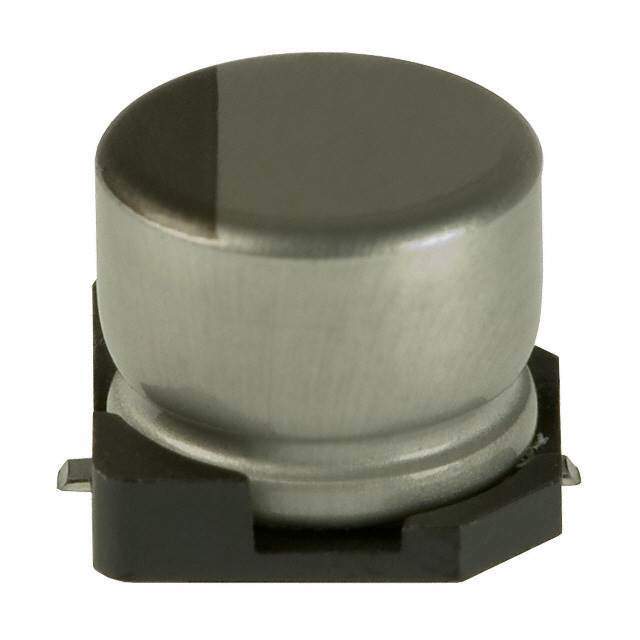

Same model may have multiple batches, images only for reference.

UWX1A470MCL1GB

Name: UWX1A470MCL1GB
Brand: Nichicon
SKU: 808543
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	UWX1A470MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 10V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Reel
Capacitance	47μF
Tolerance	±20%
Voltage - Rated	10V
Lifetime at Temp.	2000 Hrs at 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	Use For General
Ripple Current at Low Frequency	52mA at 120Hz
Ripple Current at High Frequency	78mA at 10kHz
Dimension	0.248" Dia (6.30mm)
Height - Seated (Maximum)	0.213" (5.40mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	808544-UWX1A470MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWX1A470MCL1GB CAD Model

Alternative Products

Description

Nichicon UWX1A470MCL1GB is a SMD radial, can capacitor.

Capacitance: 47μF
Tolerance: ±20%
Rated Voltage: 10V
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
Operating Temperature Range: -40°C to 85°C
Dimension: 0.248" Dia (6.30mm)
Manufacturer Pack Quantity: 1000
Estimated Lifetime at Temp: 2000 Hrs @ 85°C
Ripple Current at Low Frequency: 52mA @ 120Hz
Ripple Current at High Frequency: 78mA @ 10kHz
