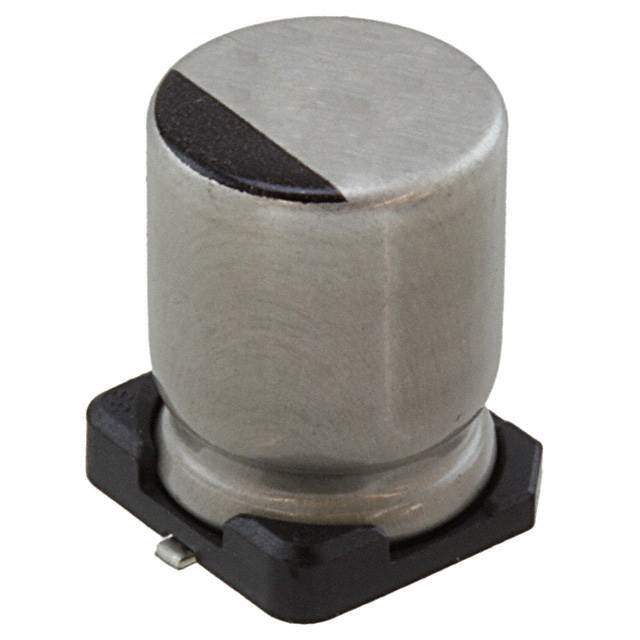

Same model may have multiple batches, images only for reference.

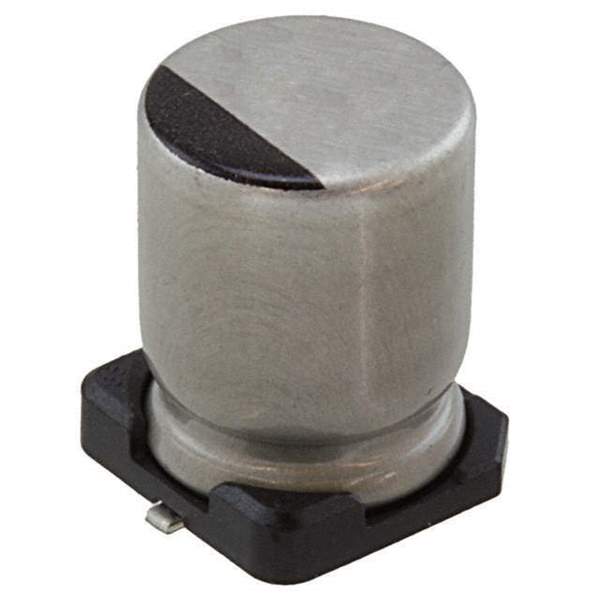

UWZ1H101MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWZ1H101MCL1GS

Part No UWZ1H101MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 50V SMD / Cap Aluminum Lytic 100uF 50V 20% (8 X 10mm) SMD 140mA 1000h 105°C Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UWZ
Packaging Reel package
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 50V
Lifetime @ Temp. 1000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Applications General
Ripple Current - Low Frequency 140mA @ 120Hz
Ripple Current - High Frequency 210mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 798948-UWZ1H101MCL1GS
Popularity Medium
Supply and Demand Status Balance
Family Name UWZ
Introduction Date August 23, 2015
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian UWZ1H101MCL1GS CAD Model

Description

The Nichicon UWZ series capacitor is a high-quality and reliable component.

  • Capacitance: 100μF
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Height - Seated (Maximum): 0.413" (10.50mm)
  • Voltage Rating DC: 50V
  • Ripple Current - Low Frequency: 140mA @ 120Hz
  • Ripple Current - High Frequency: 210mA @ 10kHz
  • Supply and Demand Status: Balanced
