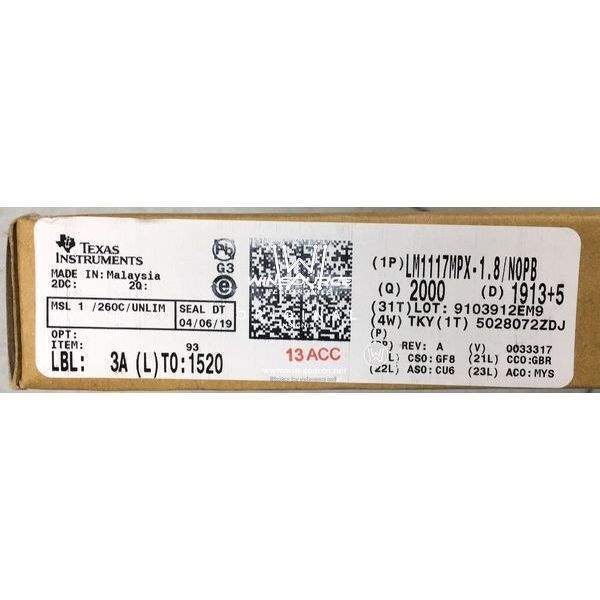

LM1117MPX-1.8/NOPB Texas Instruments LM1117MPX-1.8/NOPB Real Image LM1117MPX-1.8/NOPB Real Image LM1117MPX-1.8/NOPB real image LM1117MPX-1.8/NOPB label picture 2
Same model may have multiple batches, images only for reference.
LM1117MPX-1.8/NOPB Texas Instruments LM1117MPX-1.8/NOPB Real Image LM1117MPX-1.8/NOPB Real Image LM1117MPX-1.8/NOPB real image LM1117MPX-1.8/NOPB label picture 2
LM1117MPX-1.8/NOPB Texas Instruments LM1117MPX-1.8/NOPB Real Image LM1117MPX-1.8/NOPB Real Image LM1117MPX-1.8/NOPB real image LM1117MPX-1.8/NOPB label picture 2
Same model may have multiple batches, images only for reference.

LM1117MPX-1.8/NOPB

Part No LM1117MPX-1.8/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 1.8V 0.8A SOT223
Datasheet
LM1117MPX-1.8/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.8V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 1.8V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 018649-LM1117MPX-1.8/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LM1117MPX-1.8/NOPB CAD Model

Description

The LM1117MPX-1.8/NOPB is a high-quality, low dropout voltage regulator developed by Texas Instruments.

  • Voltage Level: 1.8V (constant)
  • Dropout Voltage: 1.2V @ up to 800mA
  • Package: 3-pin SOT-223
  • Thermal Resistance: Superior
  • Compliance: RoHS compliant
  • Protection: Current-limiting and thermal protection
  • Capacitance: Wide range of output capacitance
