Same model may have multiple batches, images only for reference.

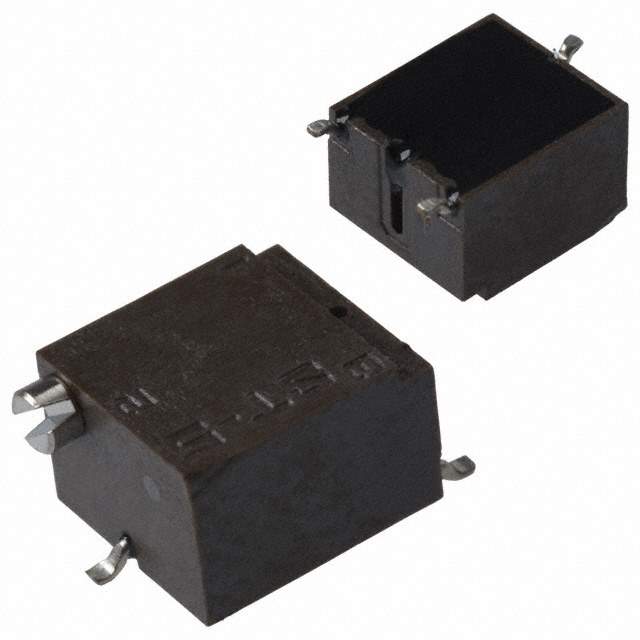

ST5ETP104 Real Image
Same model may have multiple batches, images only for reference.

ST5ETP104

Part No ST5ETP104
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Datasheet
ST5ETP104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Nidec Copal Electronics
Series ST5
Package Tape & Reel
Resistance 100 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 14
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.266" x 0.236" Face (6.75mm x 6.00mm)
Base Product Number ST5ETP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1314592-ST5ETP104
Ultra Librarian 3D Model Ultra Librarian ST5ETP104 CAD Model

Description

The Nidec Copal Electronics ST5ETP104 is a trimmer potentiometer that is used in various applications.

  • Manufacturer: Nidec Copal Electronics
  • Product Name: ST5ETP104
  • Component Type: Trimmer Potentiometer
  • Termination Style: Gull Wing
  • Tolerance: ±10 percent
  • Temperature Coefficient: ±100ppm/°C
  • Power (Watts): 0.25W, 1/4W
  • Number of Turns: 14
  • Adjustment Type: Side Adjustment
  • Resistive Material: Cermet
  • Resistance: 100 kOhms
  • Dimension: Rectangular - 0.266" x 0.236" face (6.75mm x 6.00mm)
