Same model may have multiple batches, images only for reference.

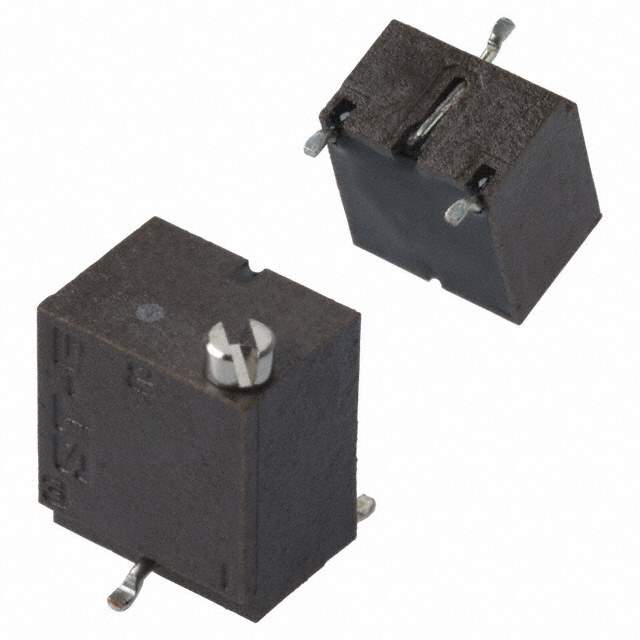

ST5ETW101 Real Image
Same model may have multiple batches, images only for reference.

ST5ETW101

Part No ST5ETW101
Manufacturer Nidec Copal Electronics
Catalog Trimmer Potentiometers
Datasheet
ST5ETW101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Nidec Copal Electronics
Series ST5
Package Tape & Reel
Resistance 100 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 14
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm)
Base Product Number ST5ETW
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 1315617-ST5ETW101
Ultra Librarian 3D Model Ultra Librarian ST5ETW101 CAD Model

Description

The ST5ETW101 is a high-quality trimmer potentiometer manufactured by Nidec Copal Electronics.

  • Type: Cermet, Top-Adjustment
  • Dimension: 0.236" x 0.169" Face (6.00mm x 4.30mm)
  • Tolerance: ±10%
  • Series: ST5
  • Turns: 14
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Resistance: 100 Ohms
  • Termination Style: Gull Wing
  • Packaging: Tape & Reel
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8533.40.8050
